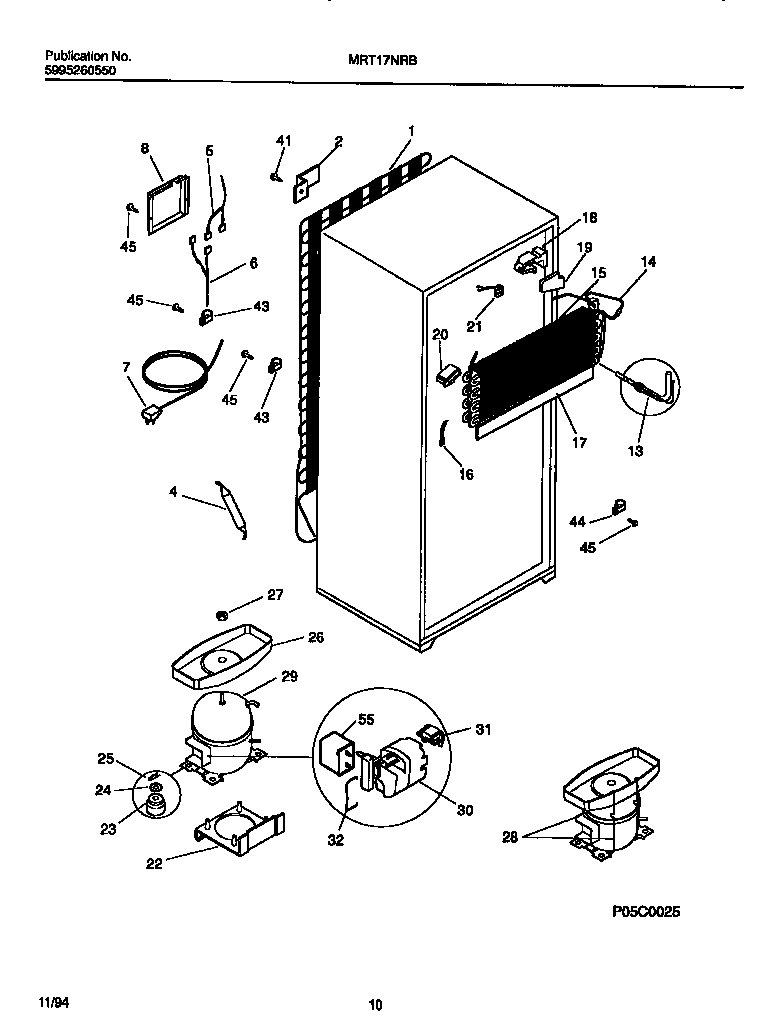

MRT17NRBW2 05 – COOLING SYSTEM

Products

PositionProduct
*16684HOT TUBE REPAIR KIT-SERVICE
1WCI 5303001341
1A5303017691 Frigidaire Refrigerator Spacer-Tube
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 5308000728
14WCI 5308009754
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29COMPRESSOR W/O ELECTRICALS
30WCI 216008900
31WCI 5303276514
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45A5304455852 Frigidaire Refrigerator Screw
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
