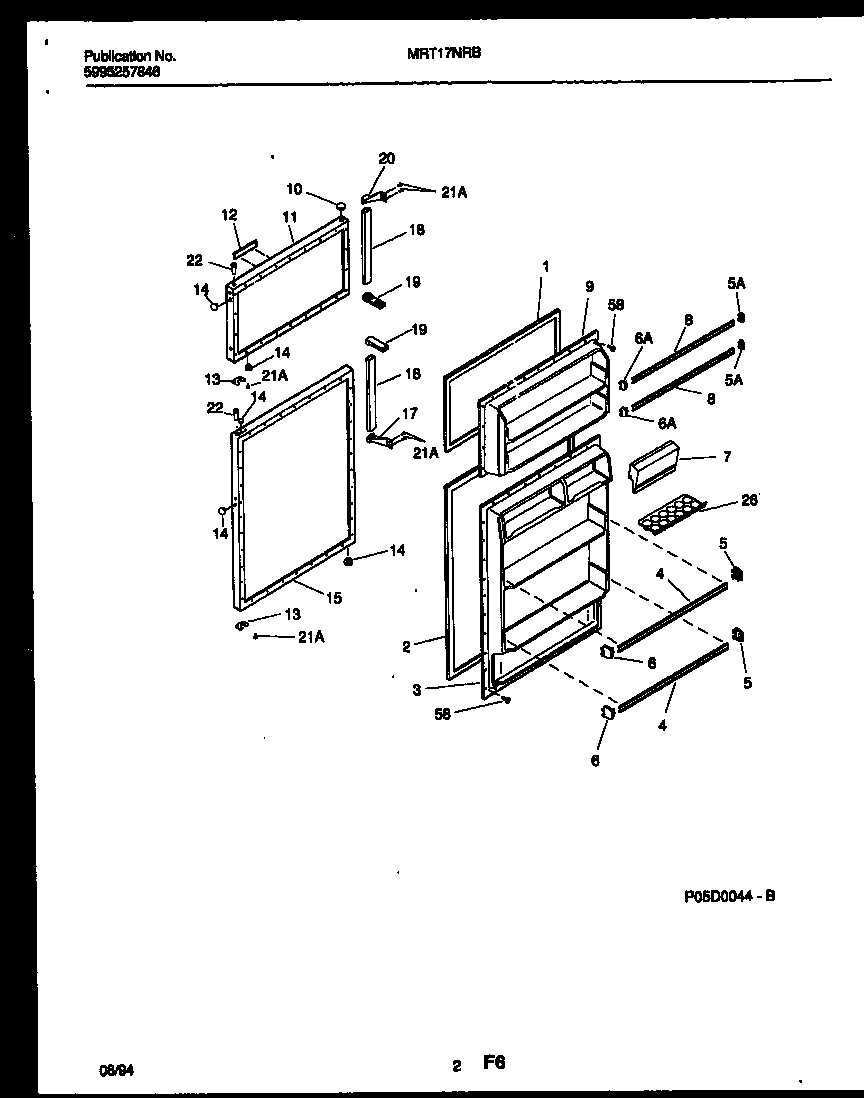

MRT17NRBY0 02 – DOOR PARTSadmin2025-04-26T09:27:59+00:00MRT17NRBY0 02 – DOOR PARTS
Products
| Position | Product |
|---|
| *11097 | INSULATION |
| 1 | GASKET-FRZR DOOR, ALMOND, MAGNETIC |
| 2 | 218730603 Frigidaire Door Gasket |
| 3 | WCI 215026201 |
| 4 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 5A | SUPPORT-DOOR RACK, EXTENDS .56``, RH |
| 5 | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6A | SUPPORT-DOOR RACK, EXTENDS .56``, LH |
| 6 | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 7 | WCI 5303304655 |
| 7A | WCI 5303001380 |
| 8 | WCI 5303300237 |
| 9 | WCI 5303290026 |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | PANEL-FRZR DOOR, ALMOND |
| 12 | WCI 215366311 |
| 12A | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 12B | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 13 | WCI 5308000255 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND |
| 17 | HANDLE END |
| 18 | WCI 5303302991 |
| 19 | WCI 5303001296 |
| 20 | HANDLE END |
| 21A | WCI 5308011745 |
| 22 | BEARING-HINGE |
| 26 | 215817806 Frigidaire Refrigerator Egg Tray |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
