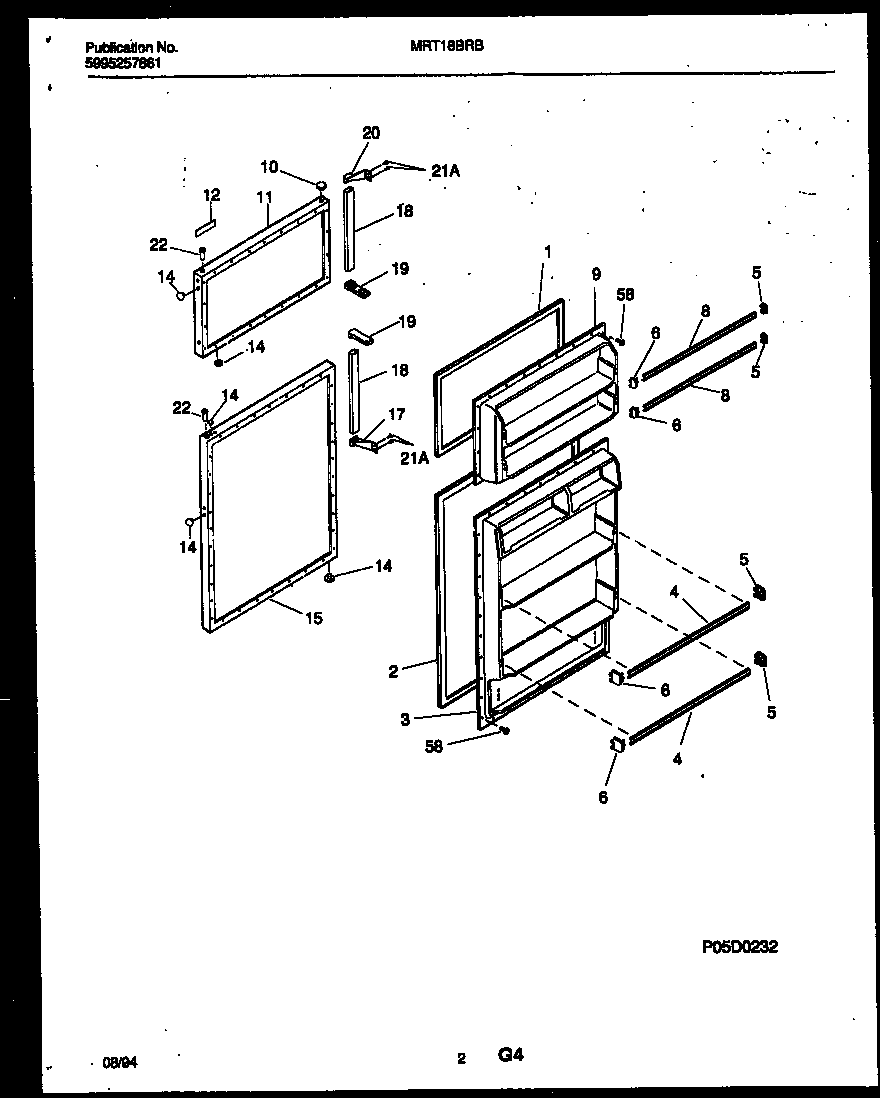

MRT18BRBD1 02 – DOOR PARTS

Products

Position	Product
*11106	INSULATION
1	WCI 215608902
2	WCI 215732403
3	WCI 5303295446
4	WCI 5303281388
5	WCI 5303007295
6	WCI 5303007297
8	WCI 5303288345
9	PANEL-INNER DOOR, FRZR
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5303917422
12	WCI 215366311
12B	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12A	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	PANEL-REFR DOOR, ALMOND, W/ INSULATION
17	HANDLE END
18	WCI 5303302991
19	WCI 5303001296
20	HANDLE END
21A	WCI 5308011745
22	BEARING-HINGE
58	5304455651 Frigidaire Refrigerator Screw
