MRT18BRCD0 02 – DOOR

MRT18BRCD0 02 – DOOR

Written by

in

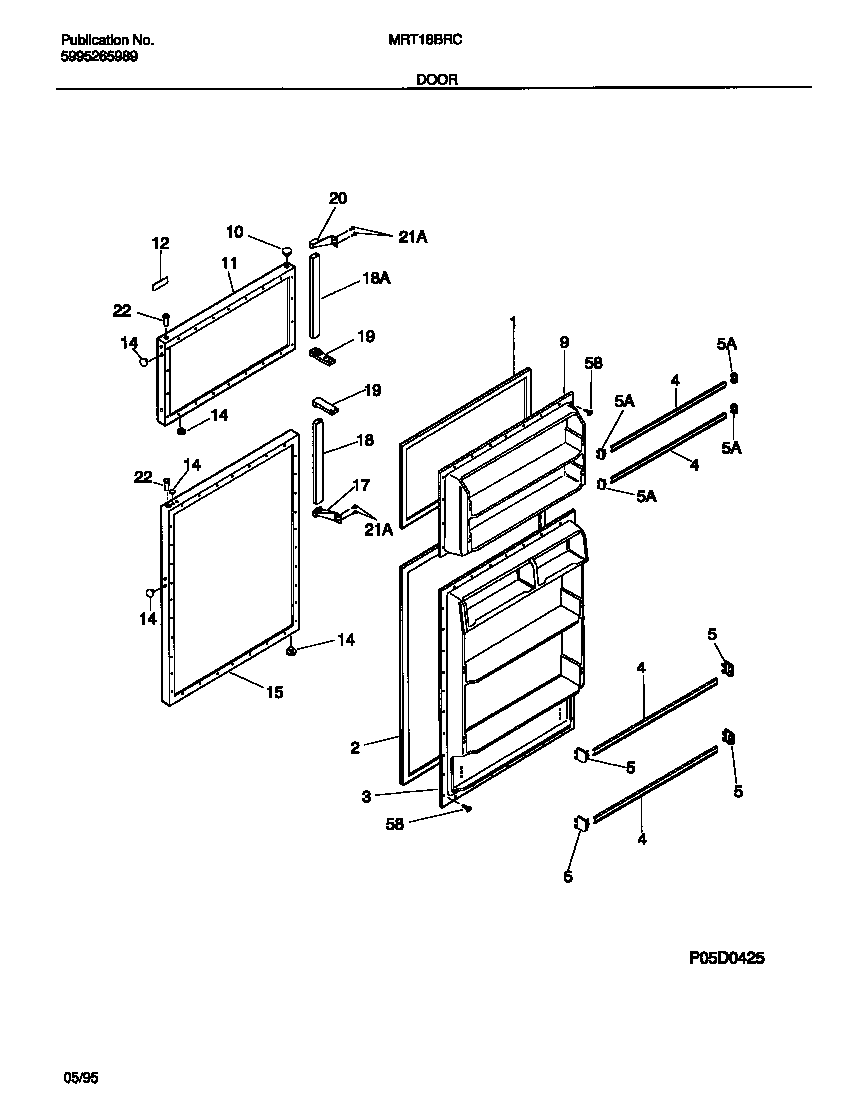

MRT18BRCD0 02 – DOOR

Products

PositionProduct
*04760INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360003
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
9WCI 218360101
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917520
12WCI 215503711
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917522
17HANDLE END
18WCI 5303290367
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
