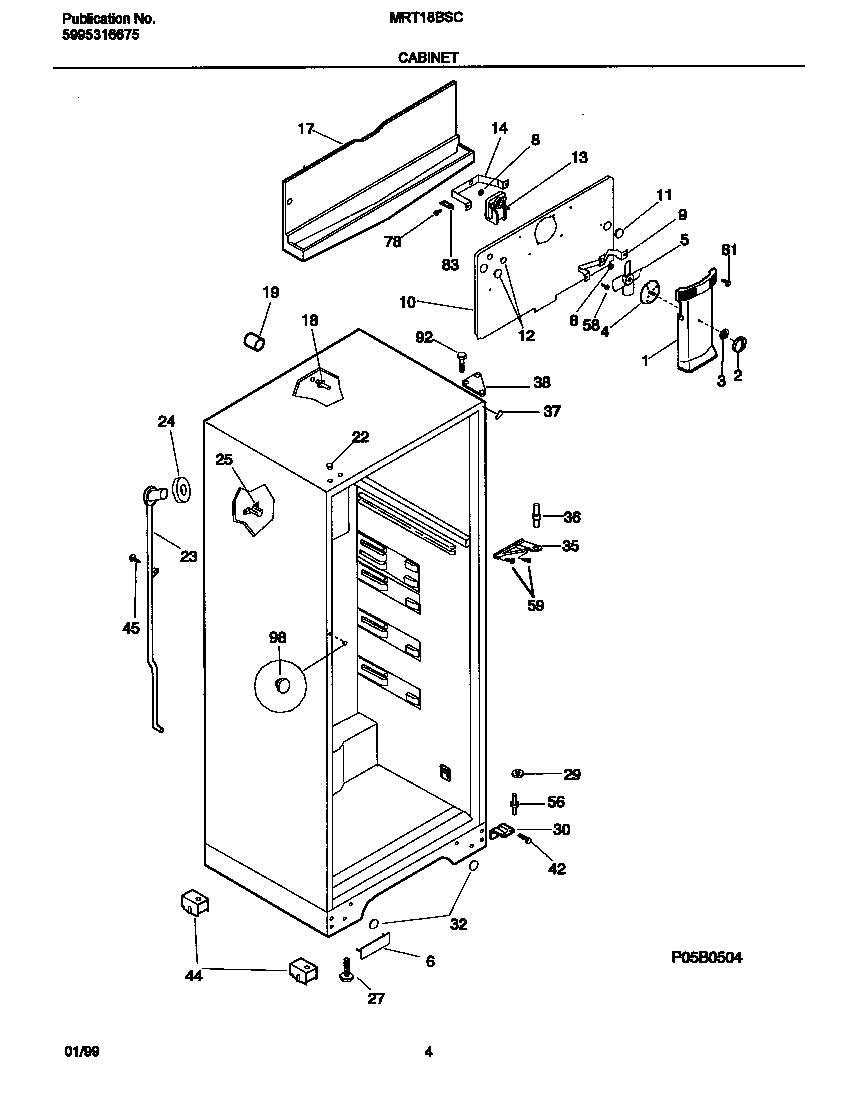

MRT18BSCW5 03 – CABINET

MRT18BSCW5 03 – CABINET

Written by

in

MRT18BSCW5 03 – CABINET

Products

PositionProduct
*35405WCI 218681200
*35408PLUG, BUTTON, CABINET LINER (NI)
*35404SHIM, LOWER HINGE (NI)
*35403TAPPING PLATE, LOWER HINGE, (2) (NI)
*354075303321319 Frigidaire Refrigerator White Touch Up Paint
*35406NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
27SCREW-LEVELING, (2)
29WCI 5308000186
30WCI 3206136
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
