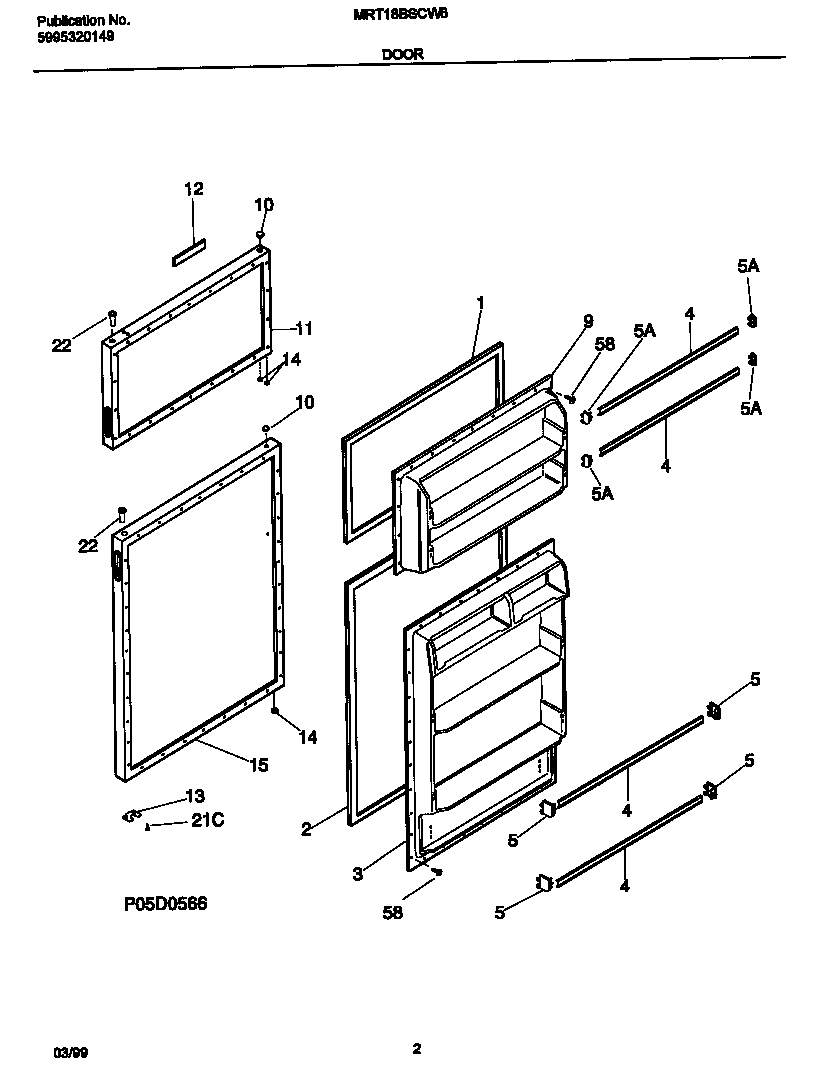

MRT18BSCW6 02 – DOORS

MRT18BSCW6 02 – DOORS

Written by

in

MRT18BSCW6 02 – DOORS

Products

PositionProduct
*07600WCI 5304400528
*07602INSULATION
*07601TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360003
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 218508701
12WCI 215503701
13WCI 218800300
14240494001 Frigidaire Refrigerator Plug Button
15WCI 218508801
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58216858001 Frigidaire Refrigerator Screw
