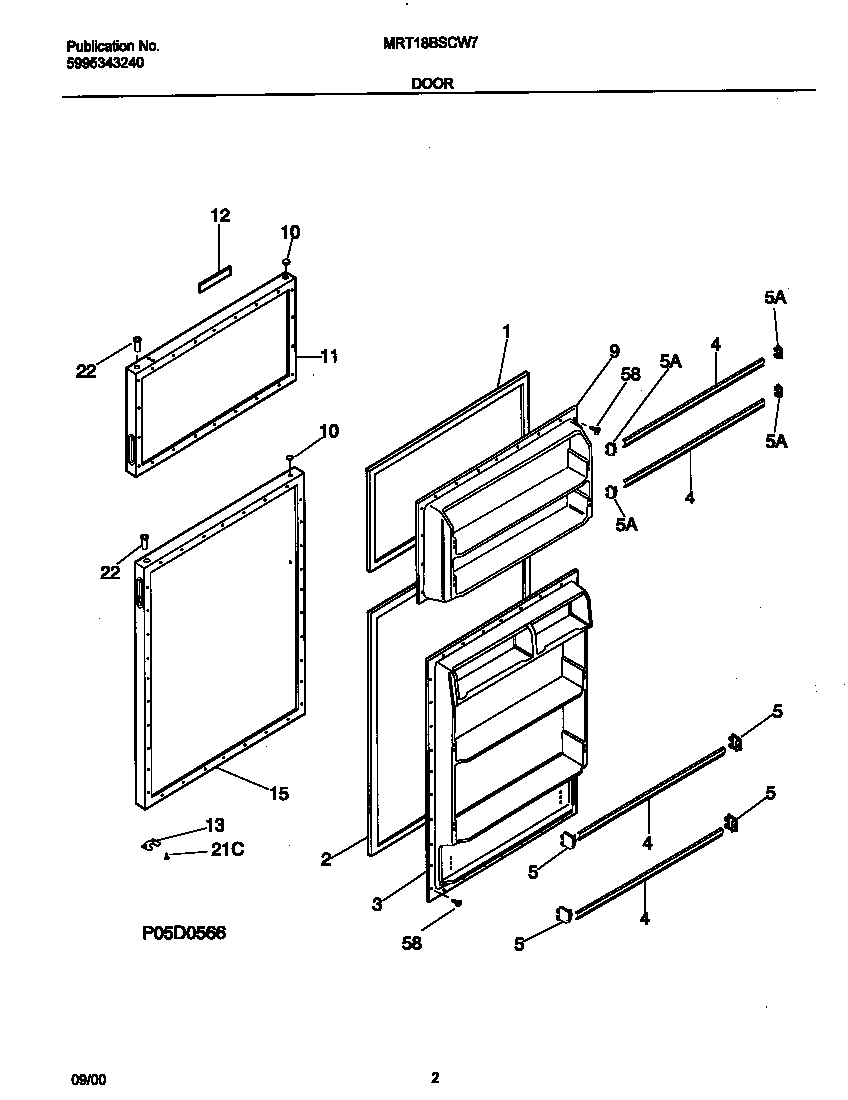

MRT18BSCW7 02 – DOOR

MRT18BSCW7 02 – DOOR

Written by

in

MRT18BSCW7 02 – DOOR

Products

PositionProduct
*15561TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*15562INSULATION
*15560NAMEPLATE,WHITE
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360003
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 218508701
12FRAME – NAMEPLATE,WHITE
13WCI 218800300
15WCI 218508801
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
58Screw,No.10 pan hd ,8-18 x .5
