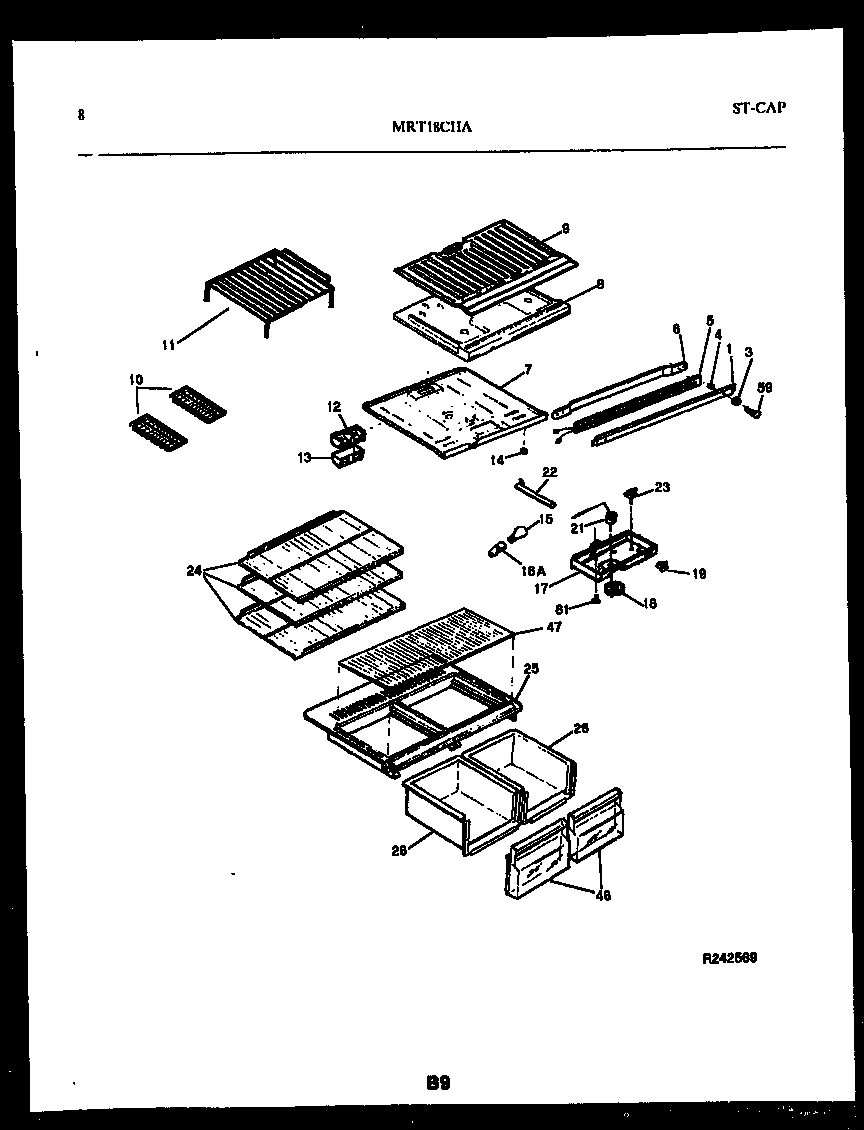

MRT18CHAAD0 05 – SHELVES AND SUPPORTS

MRT18CHAAD0 05 – SHELVES AND SUPPORTS

Written by

in

MRT18CHAAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206446
1WCI 3206450
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206445
6WCI 5303275252
7WCI 3206454
7WCI 5303001380
8WCI 3206456
83205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
115303282284 Frigidaire Wire Shelf
125303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13WCI 5303001448
13EXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 3206130
17WCI 08016567
18WCI 5303209251
19WCI 3206129
21WCI 5303001260
21WCI 5303018894
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
235304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
46FRONT, CRISPER PAN
47WCI 5303207339
59SCREW – MULLION (2)
815304455650 Frigidaire Refrigerator Screw
