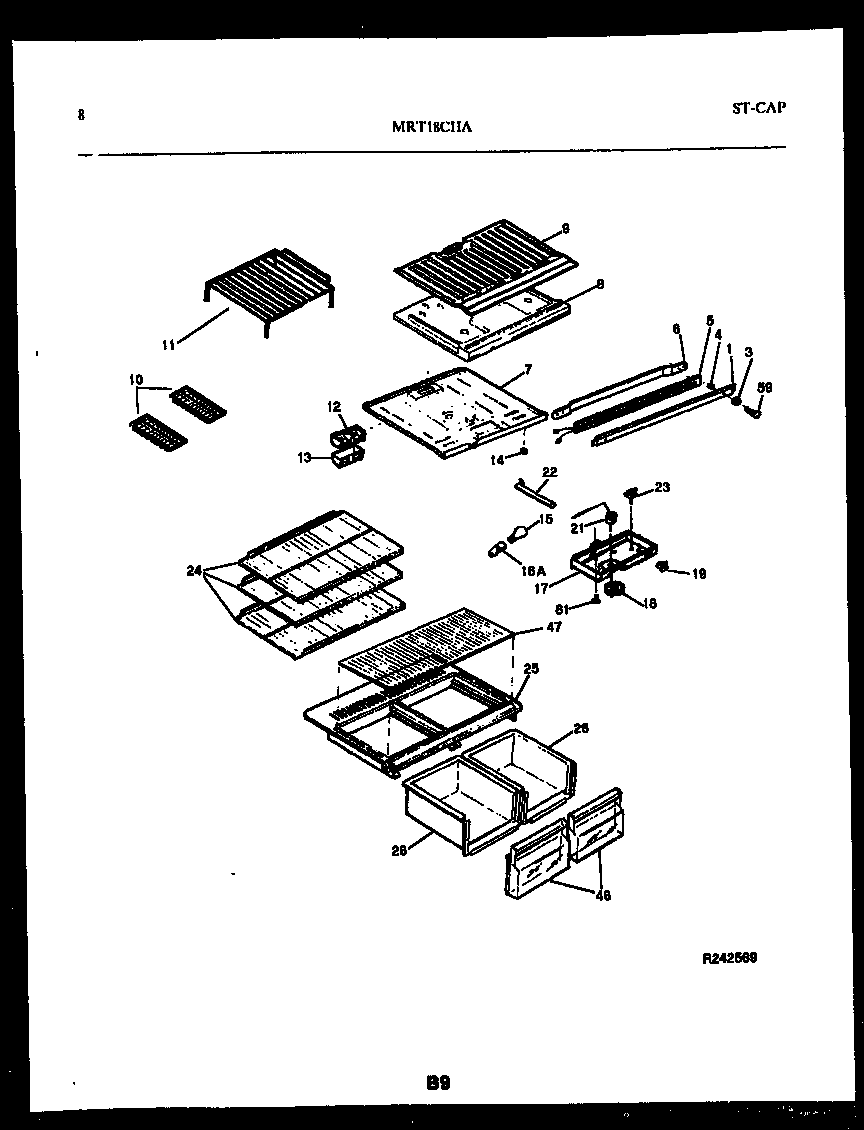

MRT18CHAZ0-00 05 – SHELVES AND SUPPORTS

MRT18CHAZ0-00 05 – SHELVES AND SUPPORTS

Written by

in

MRT18CHAZ0-00 05 – SHELVES AND SUPPORTS

Products

PositionProduct
1WCI 3206446
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 3206445
6WCI 5303275252
7AWCI 5303001380
7WCI 3206454
8WCI 3206456
8A3205266 Frigidaire Refrigerator Edge Protector
9BOTTOM PANEL-FRZR
10215667501 Frigidaire Refrigerator Ice Tray Primary
115303282284 Frigidaire Wire Shelf
12A5303001449 Frigidaire Refrigerator Seal
12DEFLECTRO, AIR, W/SEAL
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
13WCI 5303001448
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16A218906802 Frigidaire Light Lamp Socket
17AWCI 08016567
17WCI 3206130
18WCI 5303209251
19WCI 3206129
21WCI 5303018894
21AWCI 5303001260
22WCI 3018891
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23A5304455649 Frigidaire Refrigerator Screw
24SHELF, SLIDING, FULL WIDTH, WIRE, REFR SECTION
25WCI 5303207340
263206438 Frigidaire Refrigerator Crisper Pan
46FRONT, CRISPER PAN
47WCI 5303207339
59SCREW – MULLION (2)
815304455650 Frigidaire Refrigerator Screw
