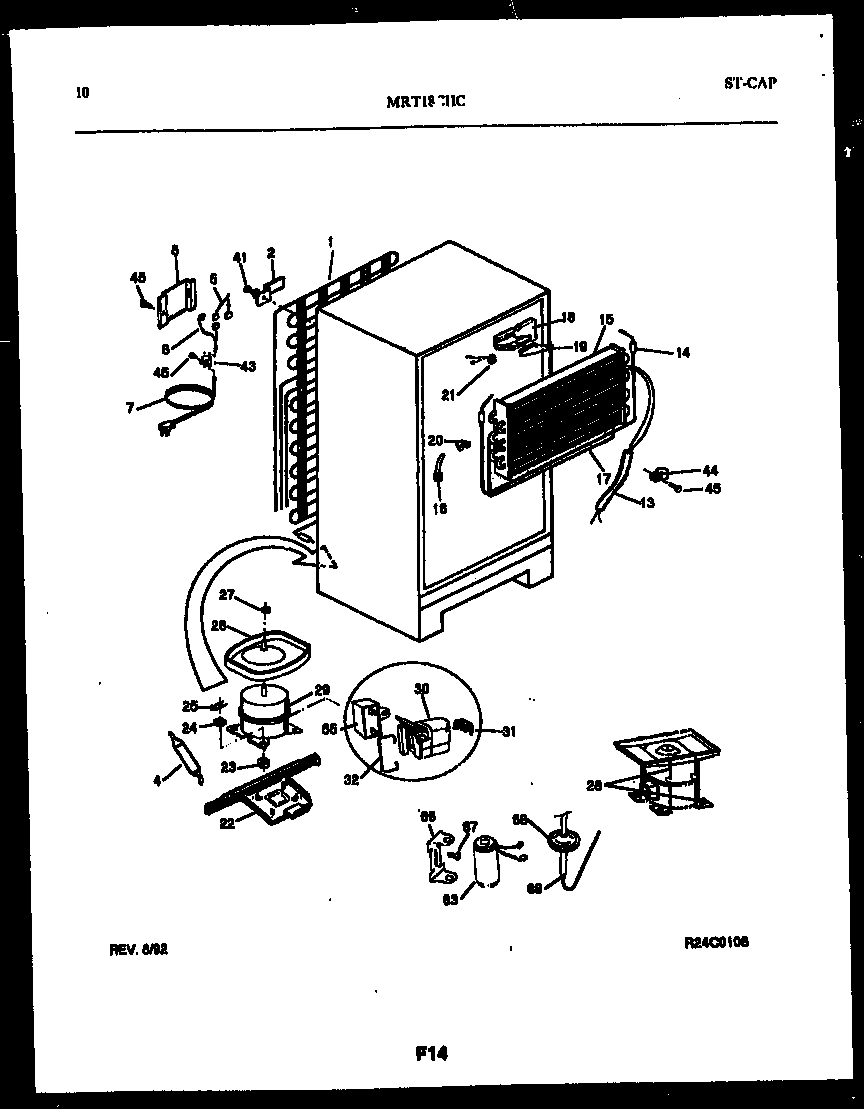

MRT18CHCA0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

MRT18CHCA0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

MRT18CHCA0 06 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
1WCI 215301200
2AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257002
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076400
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 3206126
22A5304500008 Frigidaire Oven Screw
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26A5303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
26PAN-DEFROST DRAIN, ORIG/SVCE COMPR
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29WCI 5303917190
30WCI 216008901
31WCI 5303276514
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
