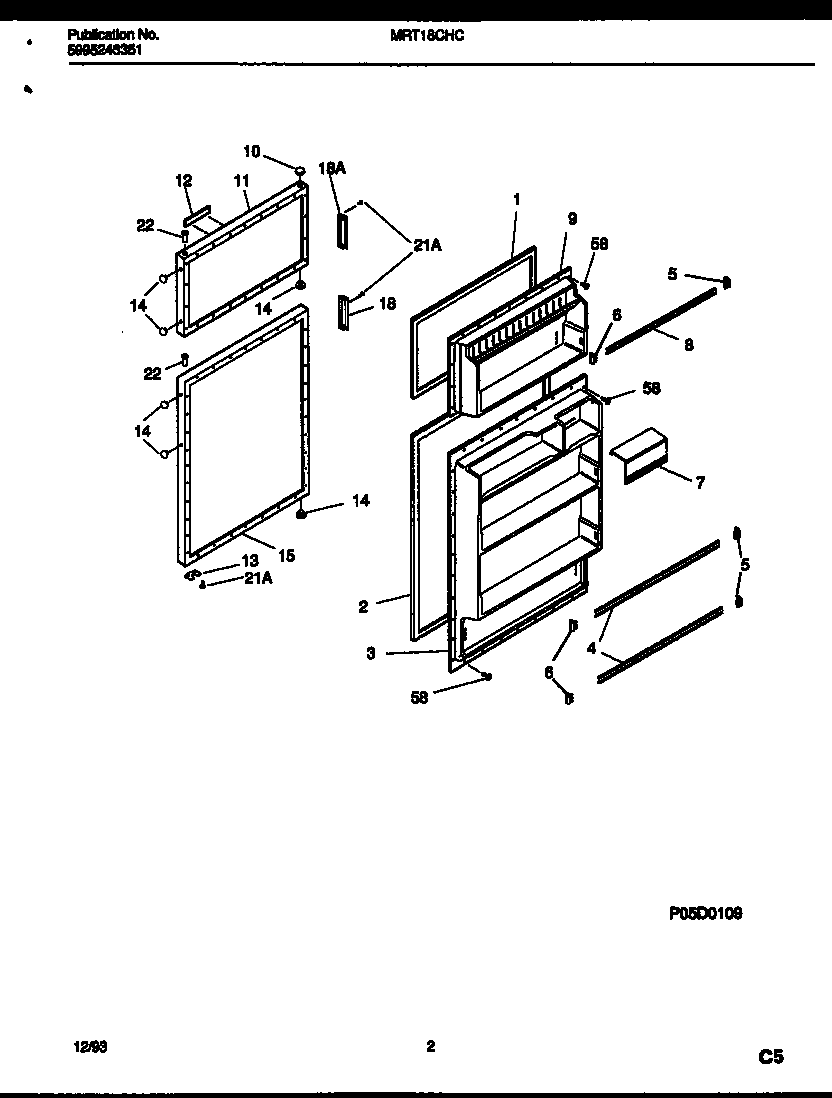

MRT18CHCY1 02 – DOOR PARTS

MRT18CHCY1 02 – DOOR PARTS

Written by

in

MRT18CHCY1 02 – DOOR PARTS

Products

PositionProduct
*92022INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303207346
4RACK, DOOR
5SUPPORT – DOOR RACK, RH
6SUPPORT – DOOR RACK, LH
7AWCI 5303001380
7WCI 5303290741
8RACK, DOOR
9WCI 5303207343
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11PANEL-FRZR DOOR, ALMOND, W/ INSULATION
12WCI 5303276130
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13WCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/ INSULATION
18WCI 5303273080
18AWCI 5303273082
21AWCI 5308011745
22BEARING-HINGE
585304455651 Frigidaire Refrigerator Screw
