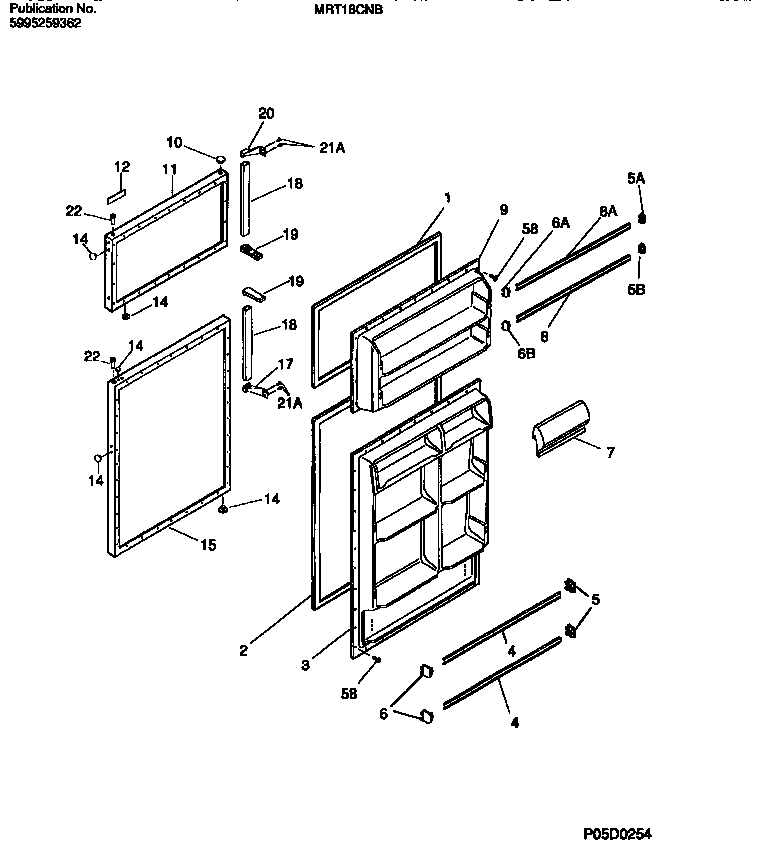

MRT18CNBW1 02 – DOOR SECTIONadmin2025-04-26T09:26:40+00:00MRT18CNBW1 02 – DOOR SECTION
Products
| Position | Product |
|---|
| *59001 | INSULATION |
| 1 | WCI 215608916 |
| 2 | 5303207345 Frigidaire Refrigerator Door Gasket |
| 3 | WCI 5303300061 |
| 5 | WCI 3206150 |
| 5A | 3206165 Frigidaire Bar Endcap Right Hand |
| 5B | SUPPORT-DOOR RACK, EXTENDS 1.06``, RH |
| 6A | WCI 3206168 |
| 6B | SUPPORT-DOOR RACK, EXTENDS 1.06``, LH |
| 6 | WCI 3206151 |
| 7 | WCI 5303293819 |
| 8A | WCI 5303300237 |
| 8 | 215366002 Frigidaire Refrigerator Door Wide Rack |
| 9 | WCI 5303295730 |
| 10 | PLUG-BUTTON, WHITE, HINGE BRG HOLE |
| 11 | WCI 5303917466 |
| 12 | WCI 215503701 |
| 12B | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 12A | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 14 | 240494001 Frigidaire Refrigerator Plug Button |
| 15 | WCI 5303917468 |
| 17 | HANDLE END |
| 18 | WCI 5303302990 |
| 19 | WCI 218217401 |
| 20 | HANDLE END |
| 21 | SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED |
| 22 | BEARING-HINGE |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
