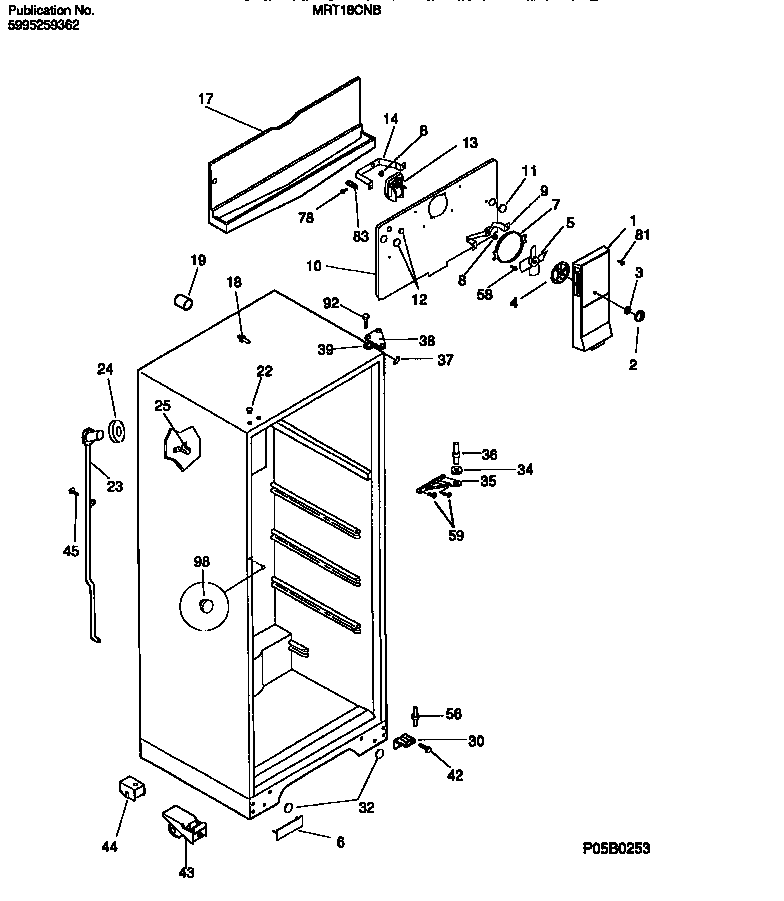

MRT18CNBW1 03 – CABINET W/FAN ASSEMBLY

Products

Position	Product
*59004	PLUG, BUTTON, CABINET LINER (NI)
*59002	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 5303300050
2	WCI 5303299978
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
12A	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
30	WCI 3206136
30A	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE, LIGHT GREY
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
41	5308000039 Frigidaire Refrigerator Screw
42	241710601 Frigidaire Refrigerator Screw
43C	WCI 5308009790
43D	WCI 5308011326
43A	WCI 5308009760
43	WCI 5300188673
43B	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
