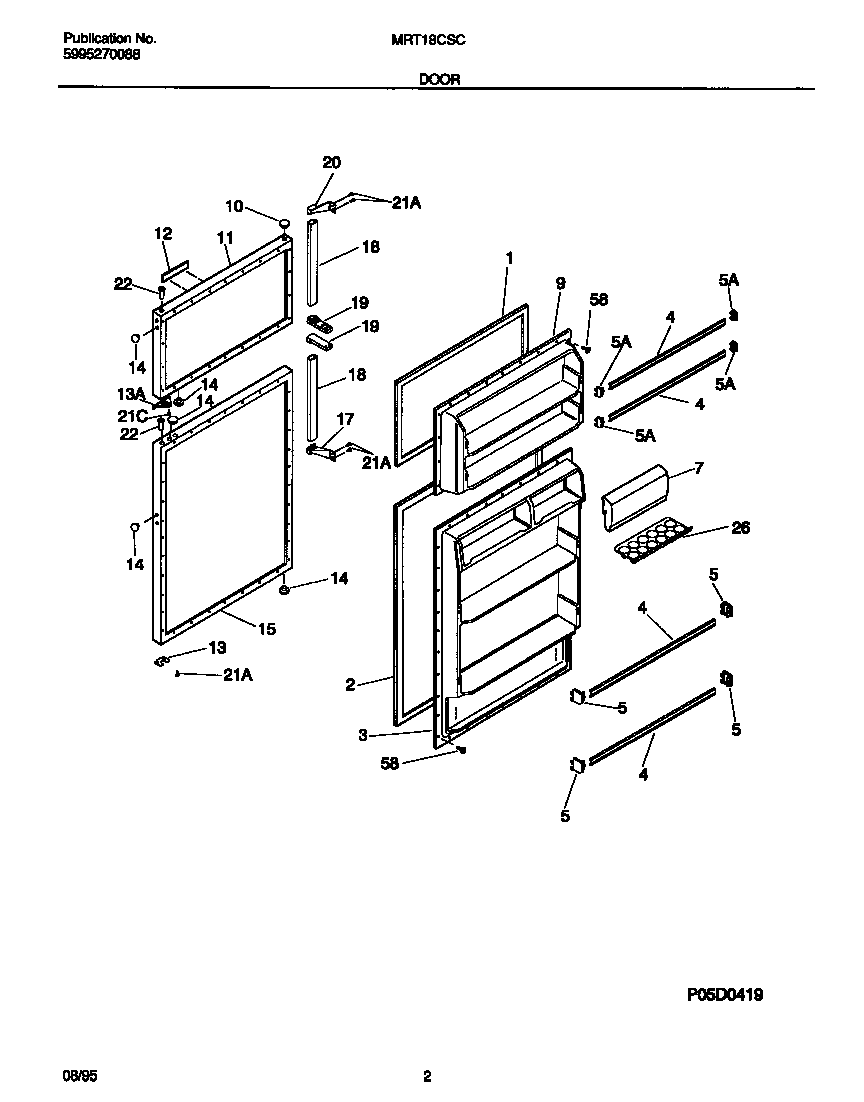

MRT18CSCW1 02 – DOOR

Products

PositionProduct
*25440INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5A215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7DOOR-DAIRY
7AWCI 5303001380
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
12WCI 215503701
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 218249001
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
16TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21C218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
