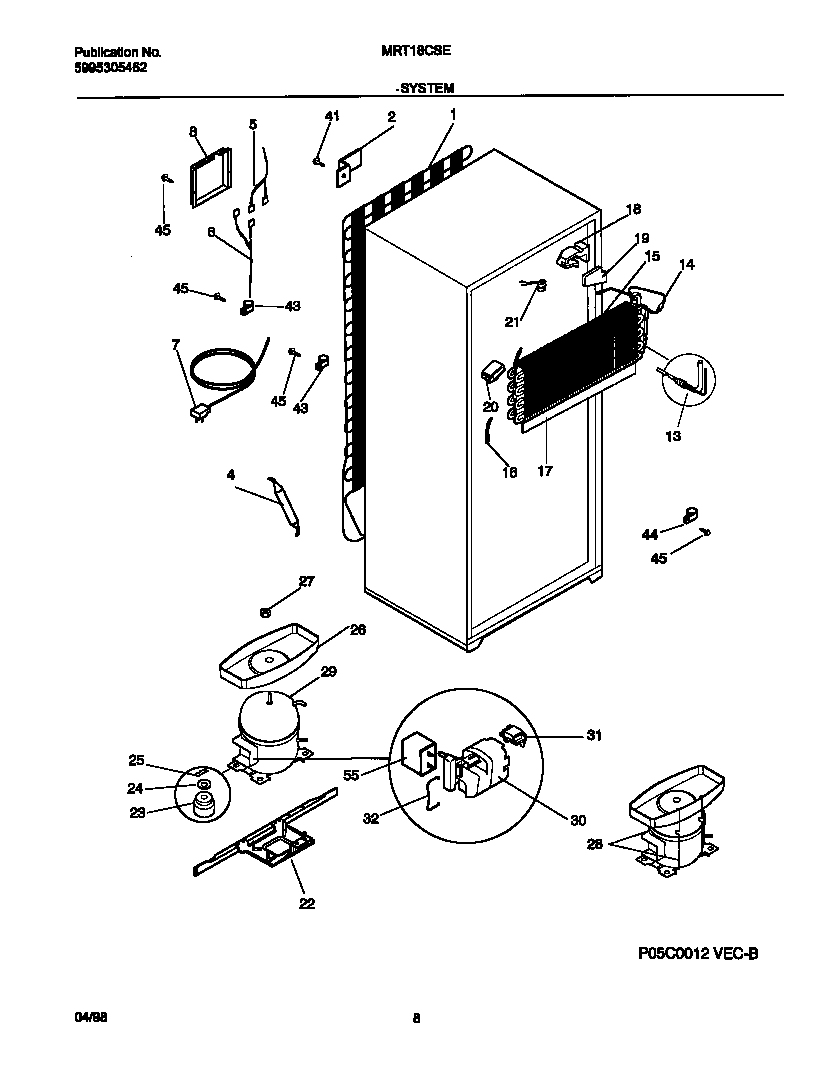

MRT18CSEZ2 05 – SYSTEM

MRT18CSEZ2 05 – SYSTEM

Written by

in

MRT18CSEZ2 05 – SYSTEM

Products

PositionProduct
*585835303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*58585WCI 3916557
*58579WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*58580WCI 3018900
*58581218843801 Frigidaire Refrigerator Screw
*585825304500008 Frigidaire Oven Screw
*585845303001199 Frigidaire Refrigerator Wiring Harness Clamp
1WCI 218173900
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429301
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
29B5304478809 Frigidaire Refrigerator Compressor Assembly
29AWCI 5308000186
30WCI 216008900
31WCI 5303299560
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
