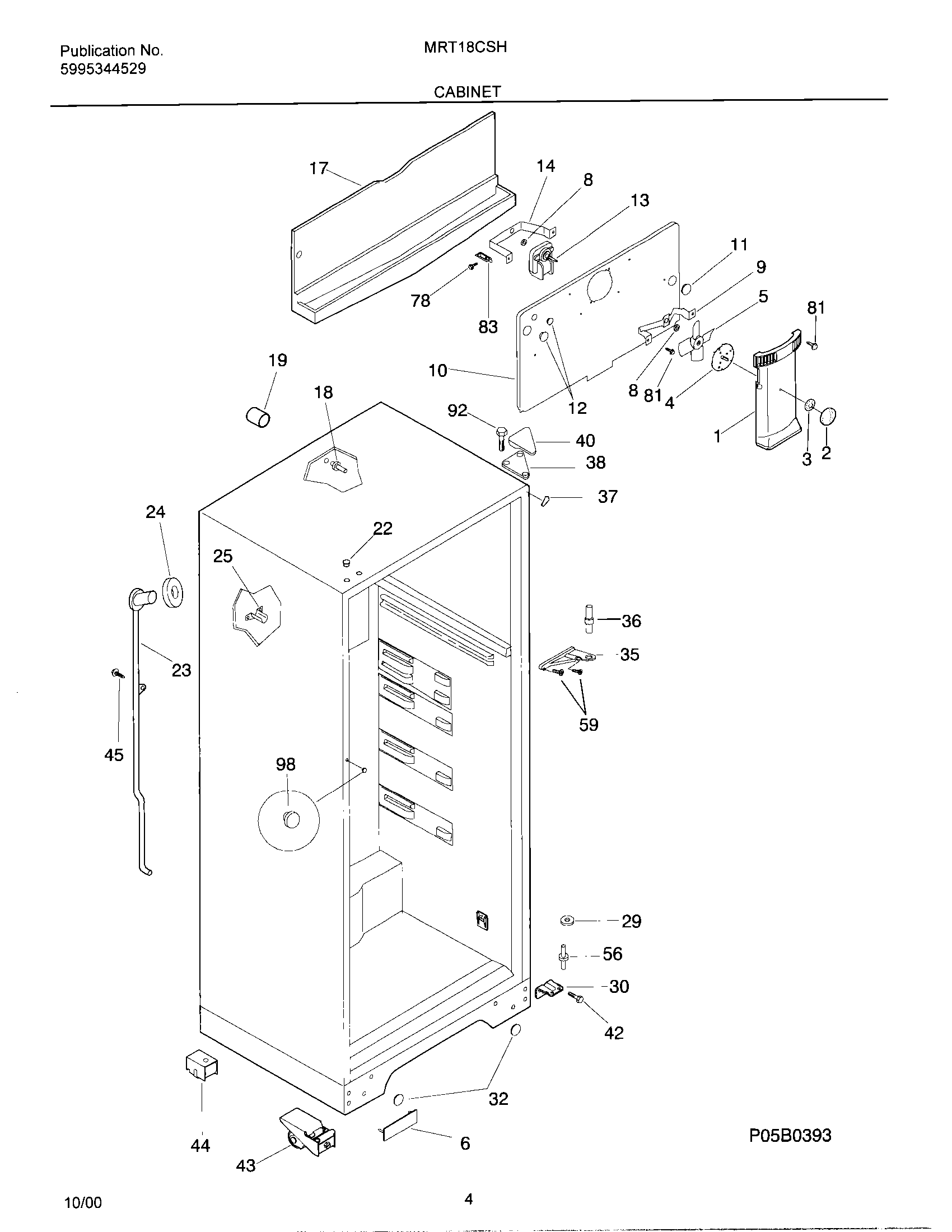

MRT18CSHW1 05 – CABINET

Products

Position	Product
	PLUG, BUTTON, CABINET LINER (NI)
	5303321319 Frigidaire Refrigerator White Touch Up Paint
1	WCI 218672501
2	WCI 5303307351
3	Nut,push-on
4	WCI 218722200
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 218448301
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 218985301
10	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079000
12	WCI 215079100
13	5300158289 Frigidaire Evaporator Fan Motor
14	WCI 5303322992
17	WCI 218973201
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
29	WCI 5308000186
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 5303917777
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	PLUG-BUTTON, WHITE, CABINET BASE
35	WCI 218998901
36	218251300 Frigidaire Refrigerator Center Hinge Pin
37	WCI 5303321081
38	WCI 3206100
40	WCI 3206101
42	241710601 Frigidaire Refrigerator Screw
43	WCI 218724000
43	WCI 218703002
43	WCI 5308011326
43	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43	WCI 5308009790
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
56	5303001321 Frigidaire Refrigerator Lower Hinge Pin
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
83	WCI 5308000107
98	215099701 Frigidaire Refrigerator Button Plug
