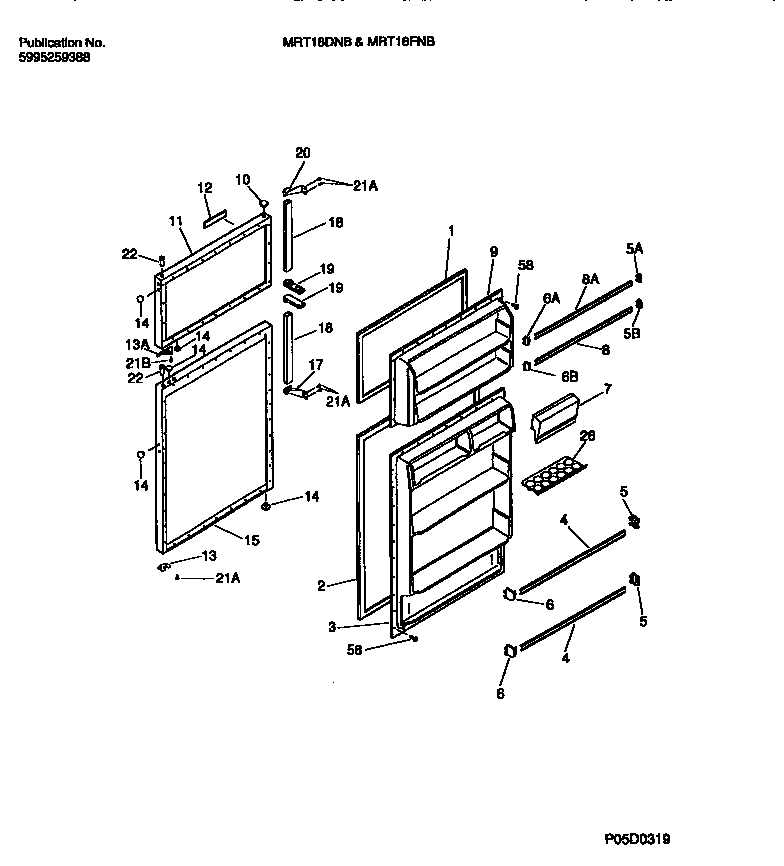

MRT18DNBD1 02 – DOOR SECTION

MRT18DNBD1 02 – DOOR SECTION

Written by

in

MRT18DNBD1 02 – DOOR SECTION

Products

PositionProduct
*07000INSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303300061
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5WCI 3206150
5A3206165 Frigidaire Bar Endcap Right Hand
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6WCI 3206151
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303293819
8AWCI 5303300237
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303295730
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917467
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 215503711
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 530800255
13AWCI 218248002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917469
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
