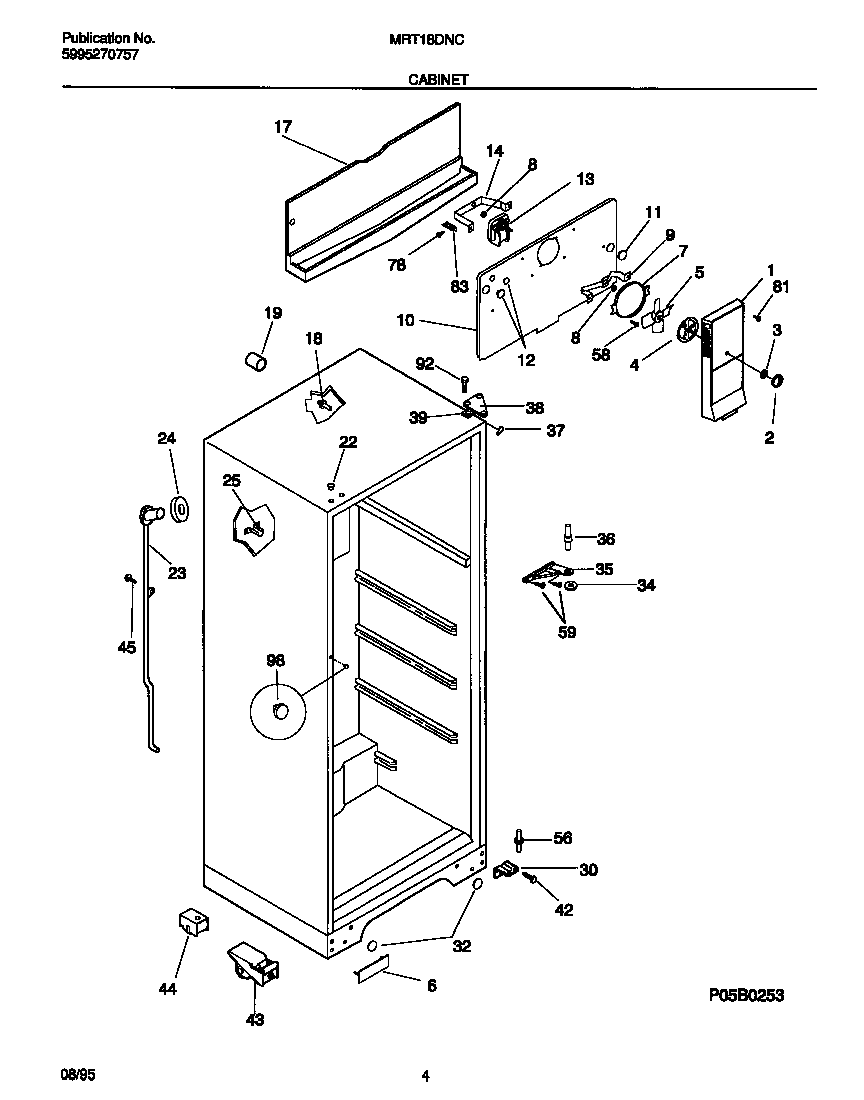

MRT18DNCW1 03 – CABINET

MRT18DNCW1 03 – CABINET

Written by

in

MRT18DNCW1 03 – CABINET

Products

PositionProduct
*61241PLUG, BUTTON, CABINET LINER (NI)
*612435303321319 Frigidaire Refrigerator White Touch Up Paint
1WCI 5303300050
2WCI 5303299978
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 3206451
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079000
12AWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
30ASHIM, LOWER HINGE (NI)
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
30WCI 3206136
32PLUG-BUTTON, WHITE, CABINET BASE
34WASHER, .34 X .62 X .05, NYLON
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, WHITE
38WCI 3206100
39SHIM – UPPER HINGE
42241710601 Frigidaire Refrigerator Screw
43BWCI 5308009790
43D5304500008 Frigidaire Oven Screw
43EBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43CWCI 5308011326
43AWCI 5308009760
43WCI 5300188673
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
