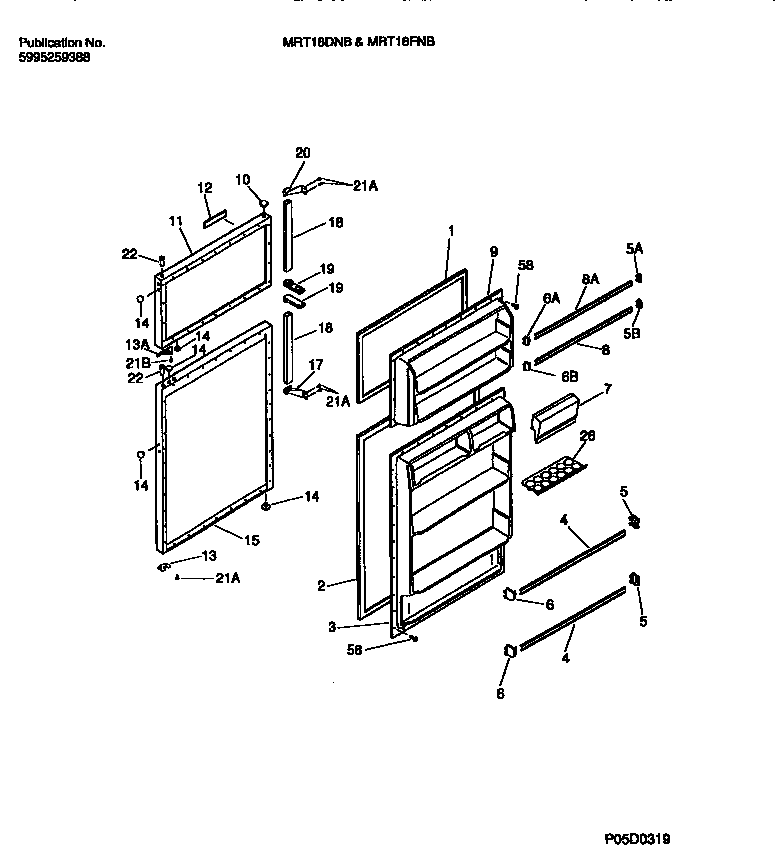

MRT18FNBW1 02 – DOOR SECTION

MRT18FNBW1 02 – DOOR SECTION

Written by

in

MRT18FNBW1 02 – DOOR SECTION

Products

PositionProduct
3WCI 5303300061
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
7WCI 5303293819
8AWCI 5303300237
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303295730
11WCI 5303917466
12WCI 215503701
12WCI 215503711
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 530800255
13AWCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917468
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
