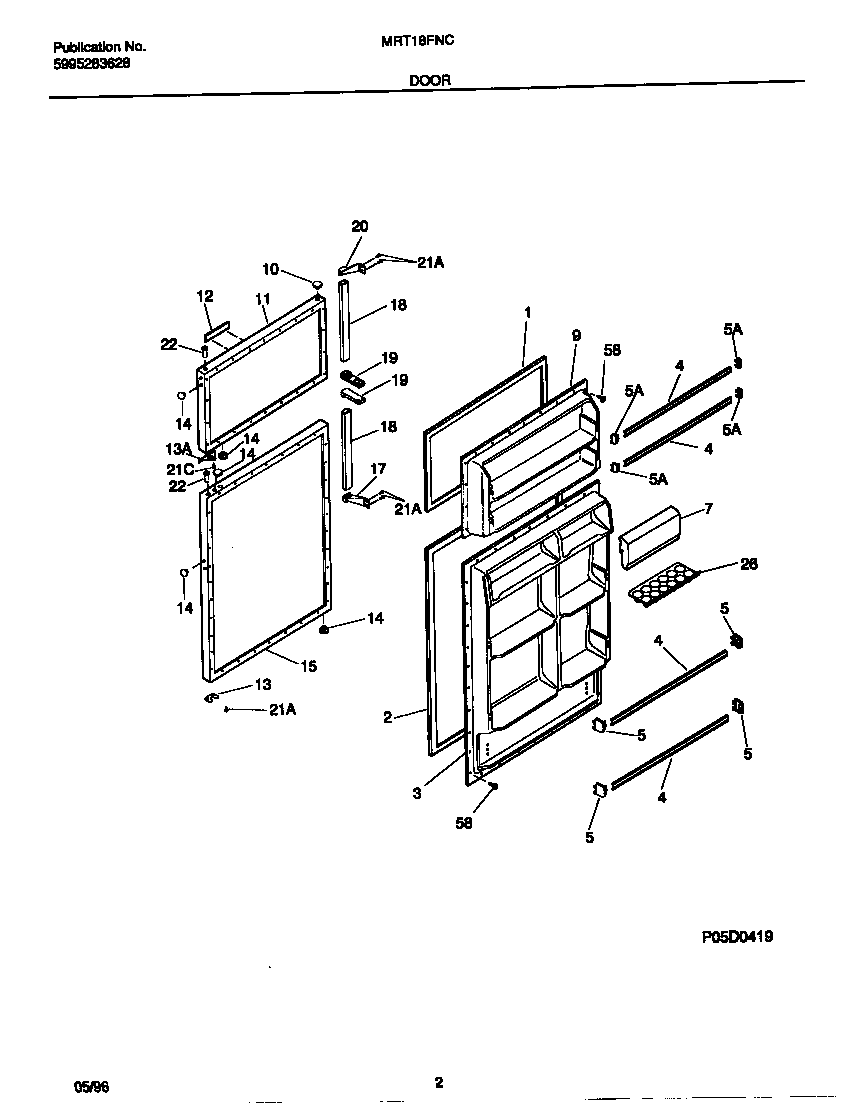

MRT18FNCW2 02 – DOOR

MRT18FNCW2 02 – DOOR

Written by

in

MRT18FNCW2 02 – DOOR

Products

PositionProduct
*32640INSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
7BWCI 5303001380
7ADOOR-DAIRY
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917519
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12WCI 215503701
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5308000255
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917521
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22WCI 218519300
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
