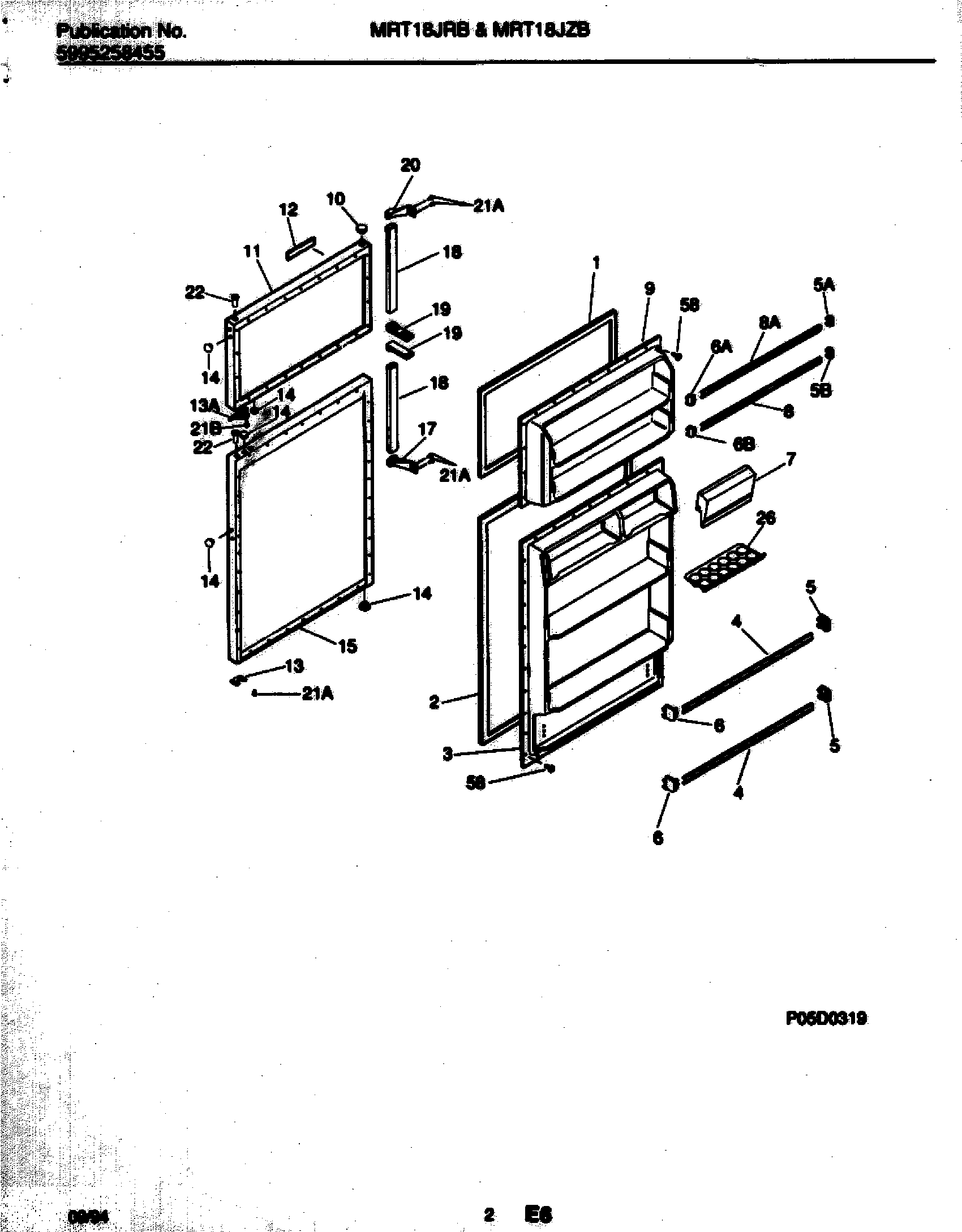

MRT18JRBW1 03 – DOORS

MRT18JRBW1 03 – DOORS

Written by

in

MRT18JRBW1 03 – DOORS

Products

PositionProduct
NIINSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303300061
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303305166
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303300237
9WCI 5303295730
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917466
12FRAME – NAMEPLATE,WHITE
12TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13AWCI 218249001
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917468
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
