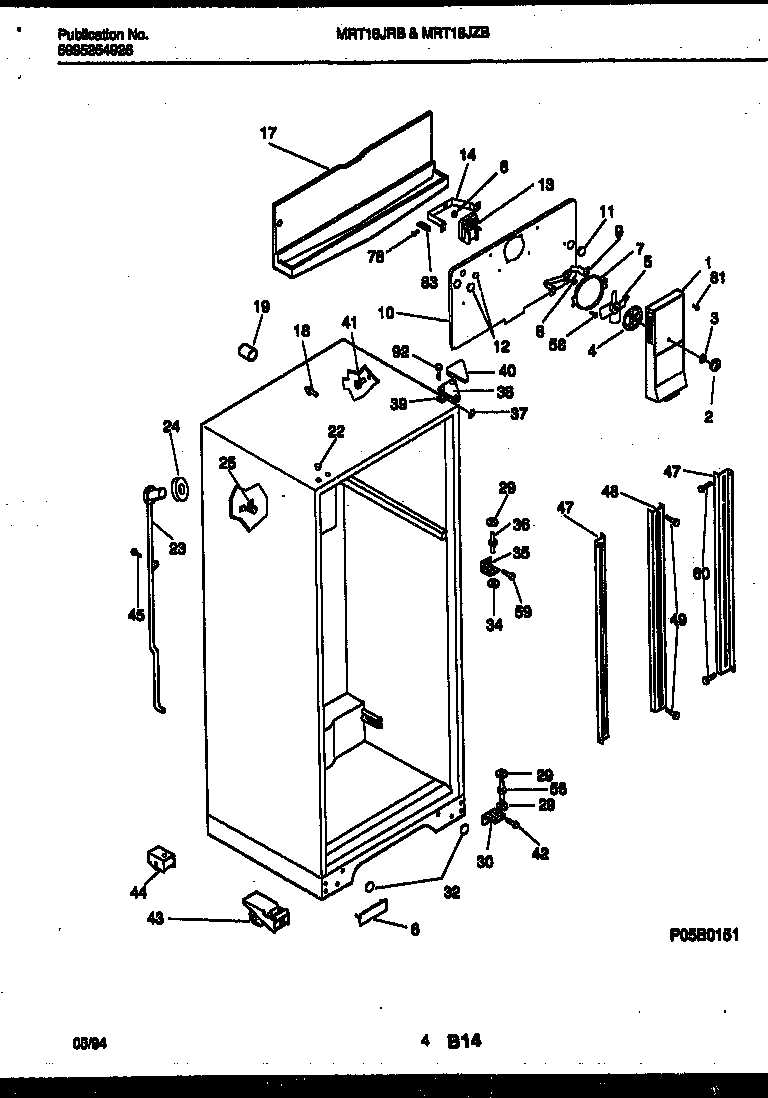

MRT18JRBWO 03 – CABINET PARTS

Products

Position	Product
1	WCI 5303300050
2	WCI 5303299978
3	Nut,push-on
4	WCI 3206110
5	5308000010 Frigidaire Refrigerator Evaporator Fan Blade
6	WCI 215846500
7	RING-FAN ORIFICE
8	G187559 Frigidaire Refrigerator Bushing
9	WCI 5303205118
10	WCI 3206451
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 215079100
12	WCI 215079000
13	5300158289 Frigidaire Evaporator Fan Motor
14	BRACKET-MOTOR MTG, REAR
17	TROUGH-DRAIN
18	SUPPORT – EVAP COVER, (2)
19	TUBE-RUBBER
22	WCI 215774911
22	215774901 Frigidaire Refrigerator Button Plug
23	WCI 5303269702
24	WCI 5303207353
25	WCI 215774100
29	WASHER, .34 X .62 X .05, NYLON
30	WCI 3206136
30	TAPPING PLATE, LOWER HINGE, (2) (NI)
32	WCI 215217702
34	WCI 5308000186
35	BRACKET-CTR HINGE
36	WCI 5308000184
37	TRIM-CABINET CORNER, ALMOND
37	TRIM-CABINET CORNER, WHITE
38	WCI 3206100
39	SHIM – UPPER HINGE
40	WCI 3206105
40	WCI 3206101
41	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
41	5304509705 Frigidaire Refrigerator Grommet
42	241710601 Frigidaire Refrigerator Screw
43	BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43	WCI 5300188673
43	WCI 5308009760
43	WCI 5308009790
43	WCI 5308011326
44	ROLLER ASSY, METAL HOUSING, REAR, (2)
45	5304455651 Frigidaire Refrigerator Screw
47	WCI 3206202
48	WCI 3916030
