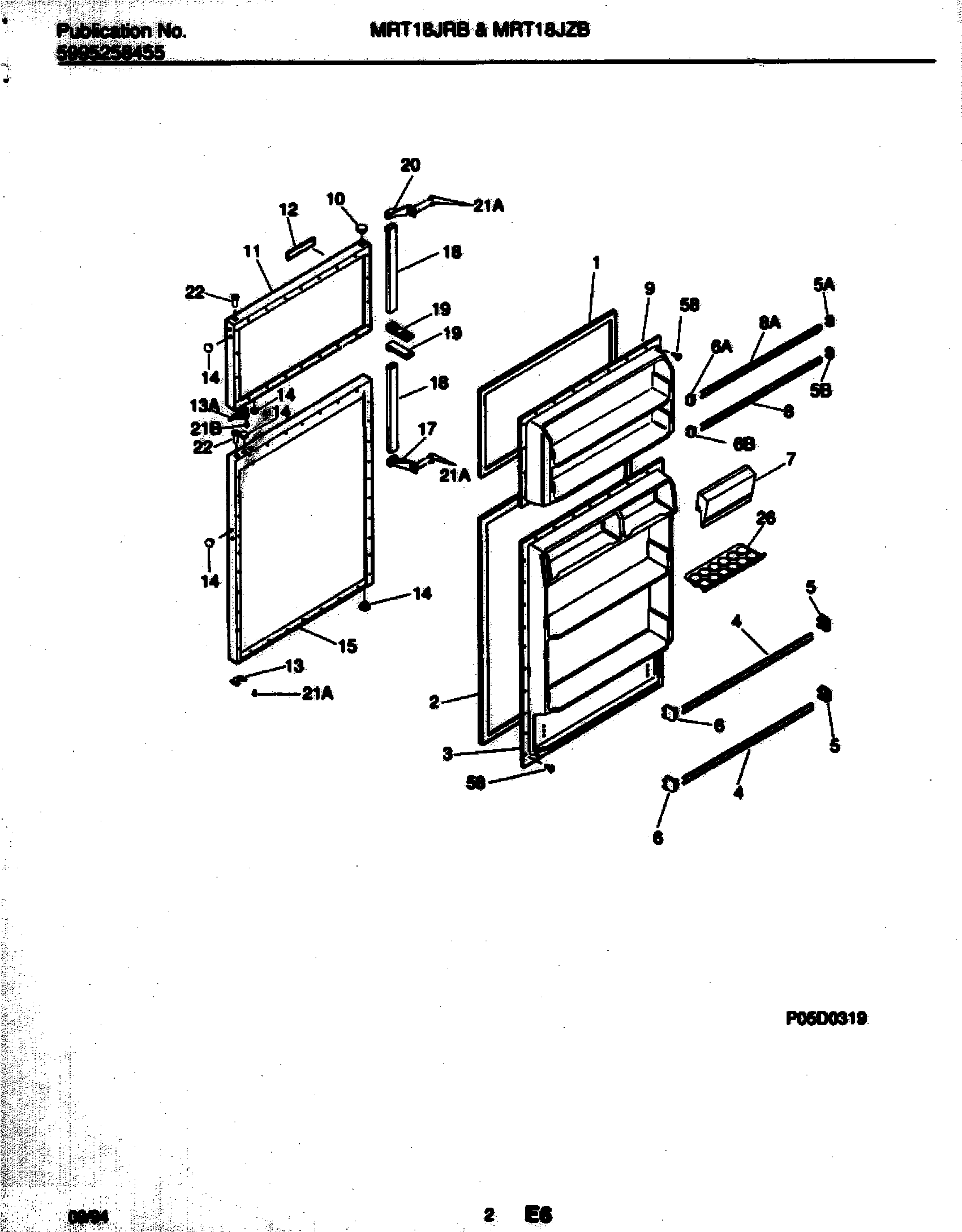

MRT18JRBY1 03 – DOORS

MRT18JRBY1 03 – DOORS

Written by

in

MRT18JRBY1 03 – DOORS

Products

PositionProduct
NIINSULATION
1WCI 215608906
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303300061
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
7WCI 5303305166
8AWCI 5303300237
8215366002 Frigidaire Refrigerator Door Wide Rack
9WCI 5303295730
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917467
12WCI 215366311
12TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 5308000255
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15WCI 5303917469
17HANDLE END
18WCI 5303302991
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
