MRT18JZBW1 03 – DOORS

MRT18JZBW1 03 – DOORS

Written by

in

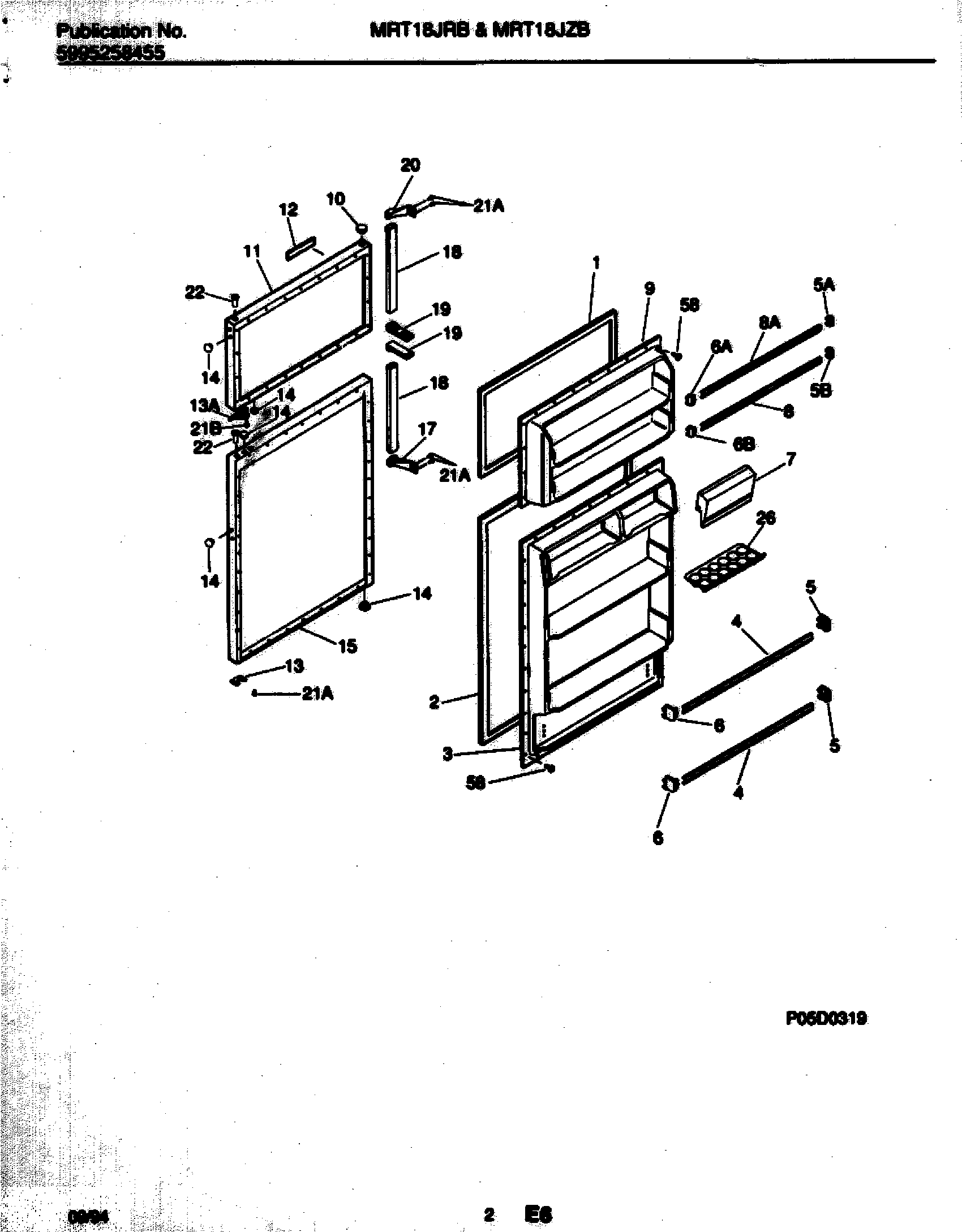

MRT18JZBW1 03 – DOORS

Products

PositionProduct
NIINSULATION
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 5303300061
5BSUPPORT-DOOR RACK, EXTENDS 1.06“, RH
5A3206165 Frigidaire Bar Endcap Right Hand
5WCI 3206150
6WCI 3206151
6A3206166 Frigidaire Refrigerator Freezer Door Shelf Retainer Bar Endcap Rack Support
6BSUPPORT-DOOR RACK, EXTENDS 1.06“, LH
7WCI 5303305166
8215366002 Frigidaire Refrigerator Door Wide Rack
8AWCI 5303300237
9WCI 5303295730
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917466
12TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12FRAME – NAMEPLATE,WHITE
13AWCI 218249001
13WCI 5308000255
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917468
17HANDLE END
18WCI 5303290367
19WCI 218217401
20HANDLE END
21ASCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21B218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
