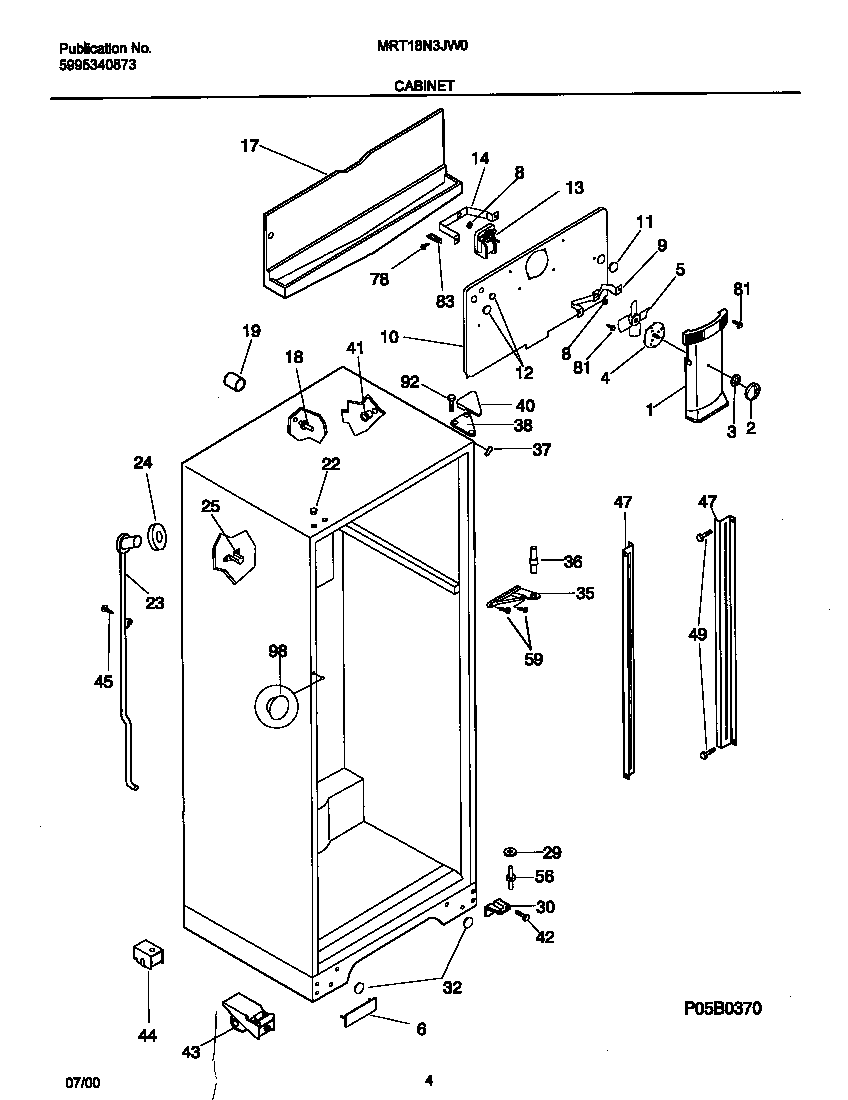

MRT18N3JW0 03 – CABINET

MRT18N3JW0 03 – CABINET

Written by

in

MRT18N3JW0 03 – CABINET

Products

PositionProduct
*26083NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*26088WCI 5308000186
*26090WCI 5308009790
*260915304455852 Frigidaire Refrigerator Screw
*260865304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*26084WCI 5308011326
*26089BOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
*260925303321319 Frigidaire Refrigerator White Touch Up Paint
*26093PLUG, BUTTON, CABINET LINER (NI)
*26087WCI 218703002
*26085TAPPING PLATE, LOWER HINGE, (2) (NI)
1WCI 218672501
2WCI 5303307351
3Nut,push-on
4WCI 218722200
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448301
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10WCI 218991001
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 215079100
12WCI 215079000
135300158289 Frigidaire Evaporator Fan Motor
14WCI 5303322992
17WCI 218725700
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22215774901 Frigidaire Refrigerator Button Plug
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WASHER, .34 X .62 X .05, NYLON
30WCI 5303917777
32PLUG-BUTTON, WHITE, CABINET BASE
35BRACKET-CTR HINGE, LIGHT GREY
36218251300 Frigidaire Refrigerator Center Hinge Pin
37WCI 5303321081
38WCI 3206100
40WCI 3206101
415304509705 Frigidaire Refrigerator Grommet
42241710601 Frigidaire Refrigerator Screw
43WCI 218724000
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
49218362501 Frigidaire Refrigerator Screw
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98215099701 Frigidaire Refrigerator Button Plug
