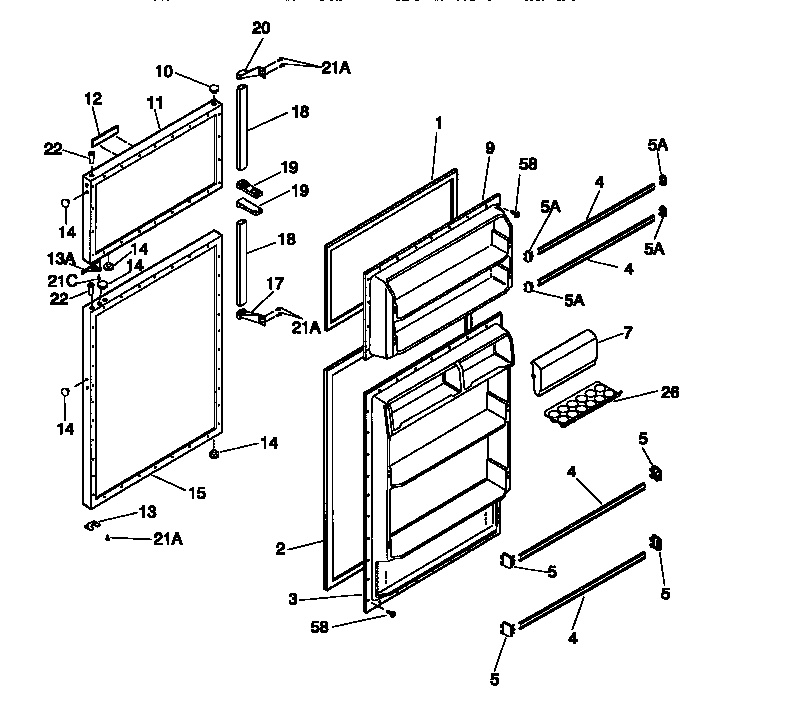

MRT18NNCD1 02 – DOOR

Products

Position	Product
*30120	INSULATION
1	WCI 215608906
2	5303207345 Frigidaire Refrigerator Door Gasket
3	WCI 218360001
4	215366002 Frigidaire Refrigerator Door Wide Rack
5	215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5	215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7A	WCI 218287802
7B	WCI 5303001380
9	WCI 218360101
10	PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11	WCI 5303917520
12	TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12	WCI 215503711
13	WCI 218249002
13	WCI 5308000255
14	PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15	WCI 5303917522
16	TAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
17	HANDLE END
18	WCI 5303302991
19	WCI 218217401
20	HANDLE END
21	SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21	218252201 Frigidaire Refrigerator Screw
22	BEARING-HINGE
26	215817806 Frigidaire Refrigerator Egg Tray
58	5304455651 Frigidaire Refrigerator Screw
