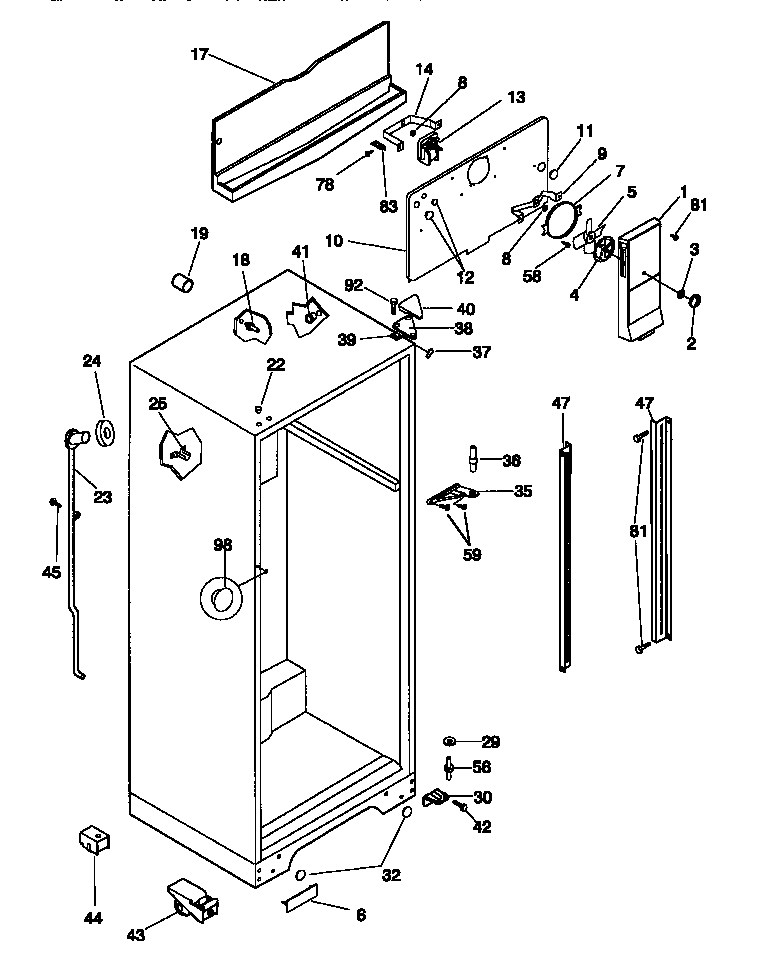

MRT18NNCD1 03 – CABINET

MRT18NNCD1 03 – CABINET

Written by

in

MRT18NNCD1 03 – CABINET

Products

PositionProduct
*30124PLUG, BUTTON, CABINET LINER (NI)
*301215304500008 Frigidaire Oven Screw
*30122TOUCH, UP PAINT, ALMOND (NI)
1WCI 5303300050
2WCI 5303299978
3Nut,push-on
4WCI 218430000
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6WCI 218448302
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10AWCI 3206451
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17TROUGH-DRAIN
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
22WCI 215774911
23WCI 5303269702
24WCI 5303207353
25WCI 215774100
29WCI 5308011326
30BTAPPING PLATE, LOWER HINGE, (2) (NI)
30AWCI 3206136
30CSHIM, LOWER HINGE (NI)
32PLUG-BUTTON, ALMOND, CABINET BASE
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
39SHIM – UPPER HINGE
40WCI 3206105
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
42241710601 Frigidaire Refrigerator Screw
43CBOLT-ROLLER ADJ, (2) (NON-ILLUSTRATED)
43DWCI 5308009790
43BWCI 5308009760
43AWCI 5300188673
44ROLLER ASSY, METAL HOUSING, REAR, (2)
455304455651 Frigidaire Refrigerator Screw
47WCI 218233300
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
