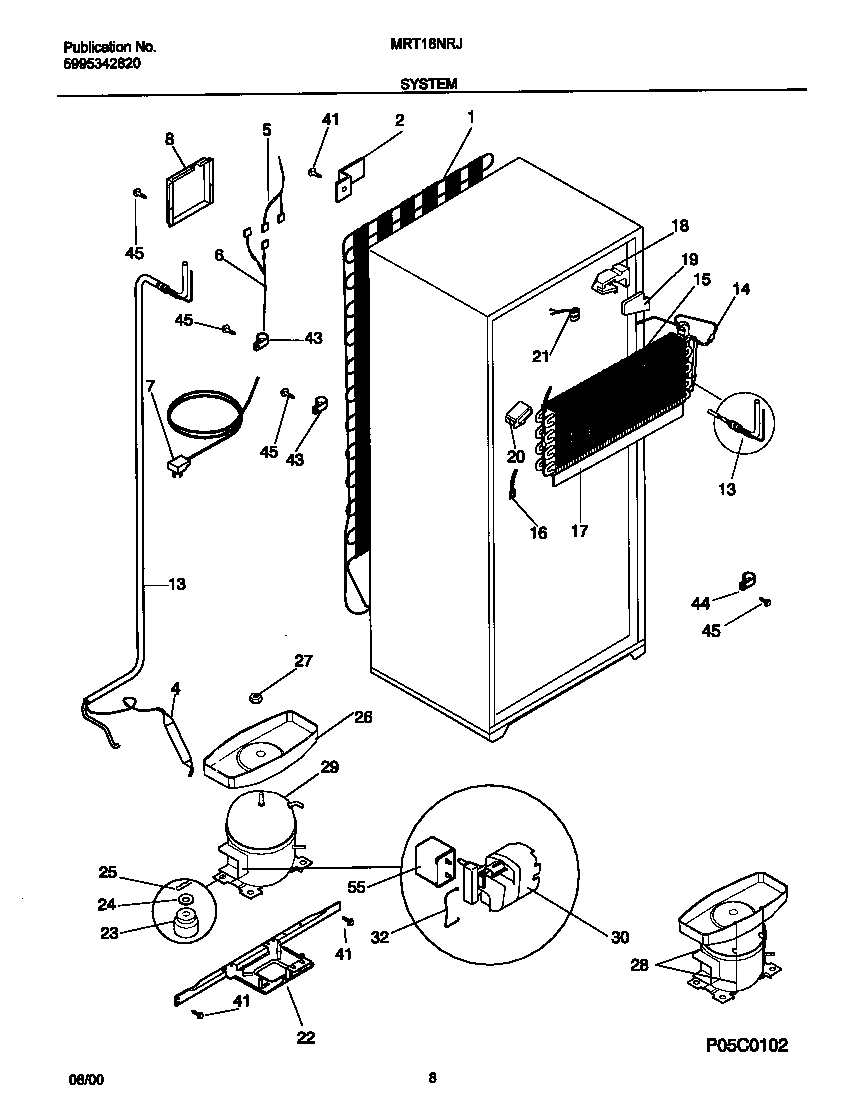

MRT18NRJW1 05 – SYSTEM

MRT18NRJW1 05 – SYSTEM

Written by

in

MRT18NRJW1 05 – SYSTEM

Products

PositionProduct
*02899SPACER-COND TUBE,BLACK
*02900WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*02901218843801 Frigidaire Refrigerator Screw
*02903WCI 3916557
*029025304455852 Frigidaire Refrigerator Screw
1WCI 218173900
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING,CONTROL/DIVIDER
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429306
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15WCI 218955901
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 218973101
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
