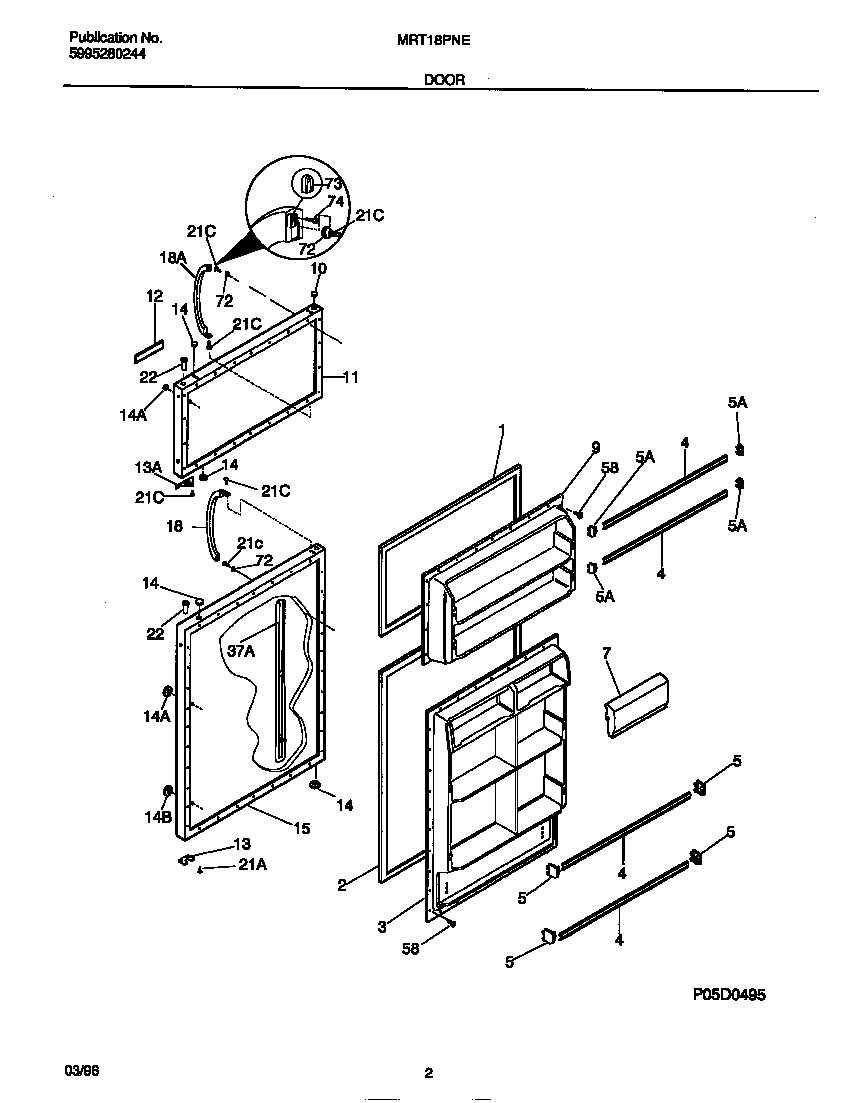

MRT18PNEW0 02 – DOOR

MRT18PNEW0 02 – DOOR

Written by

in

MRT18PNEW0 02 – DOOR

Products

PositionProduct
*98041WCI 215782300
*98042INSULATION
*98040WCI 215940700
1WCI 215608916
25303207345 Frigidaire Refrigerator Door Gasket
3WCI 218360001
4215366002 Frigidaire Refrigerator Door Wide Rack
5215473602 Frigidaire Refrigerator White Left or Right Door Shelf End Cap
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 218287816
9WCI 218360101
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917795
12WCI 218428201
12MAGNET-NAMEPLATE (NOT ILLUSTRATED)
13WCI 218249001
13WCI 5308000255
14WCI 218074001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917797
18WCI 218428104
18WHITE DOOR HANDLE
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
37WCI 218397701
58216858001 Frigidaire Refrigerator Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
