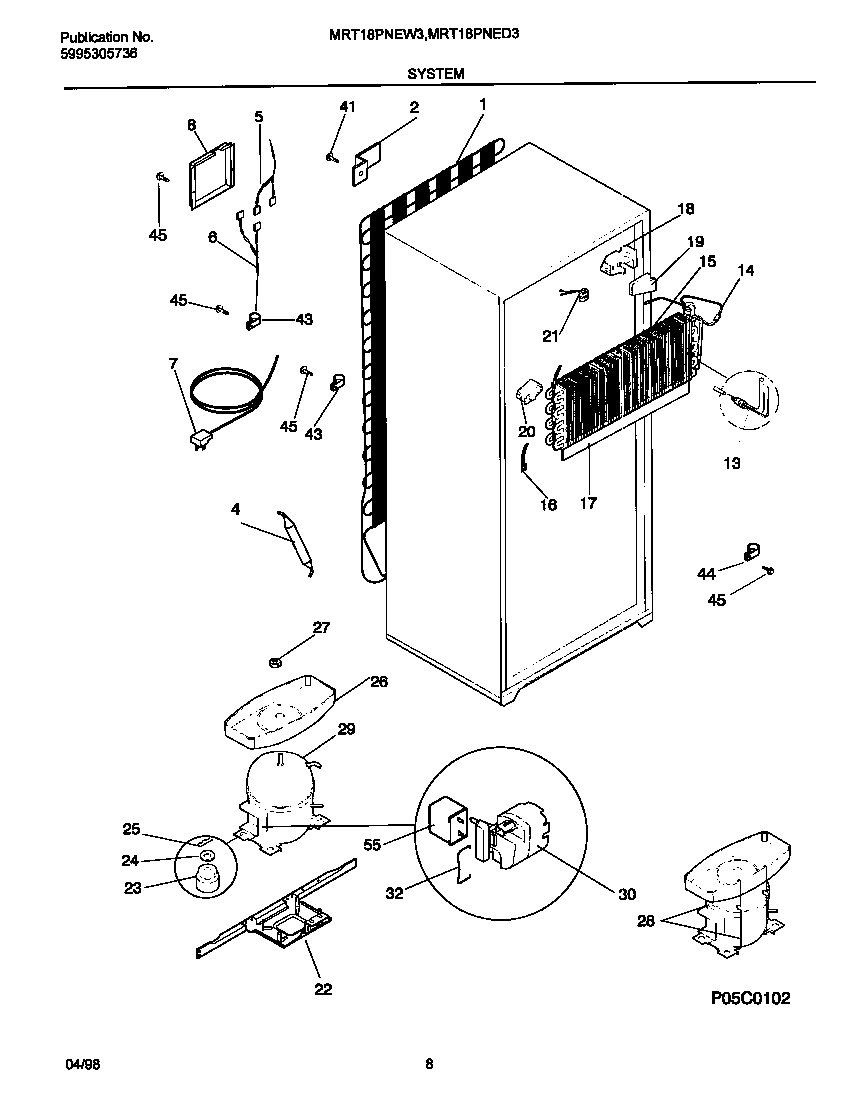

MRT18PNEW3 05 – SYSTEM

Products

PositionProduct
*17667WCI 3916557
*17662WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*176645304500008 Frigidaire Oven Screw
*17663218843801 Frigidaire Refrigerator Screw
*176655304455852 Frigidaire Refrigerator Screw
1WCI 218173900
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 3018900
6WCI 215257004
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 218429306
143206453 Frigidaire Refrigerator Defrost Heater 22 1/4" Wide X 4" Deep
15EVAPORATOR
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303207493
18INSULATION BLOCK, RH
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 218802500
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304511983 Frigidaire Refrigerator Compressor Assembly Kit
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
455304455651 Frigidaire Refrigerator Screw
55A5304464438 Frigidaire Compressor Run Capacitor
