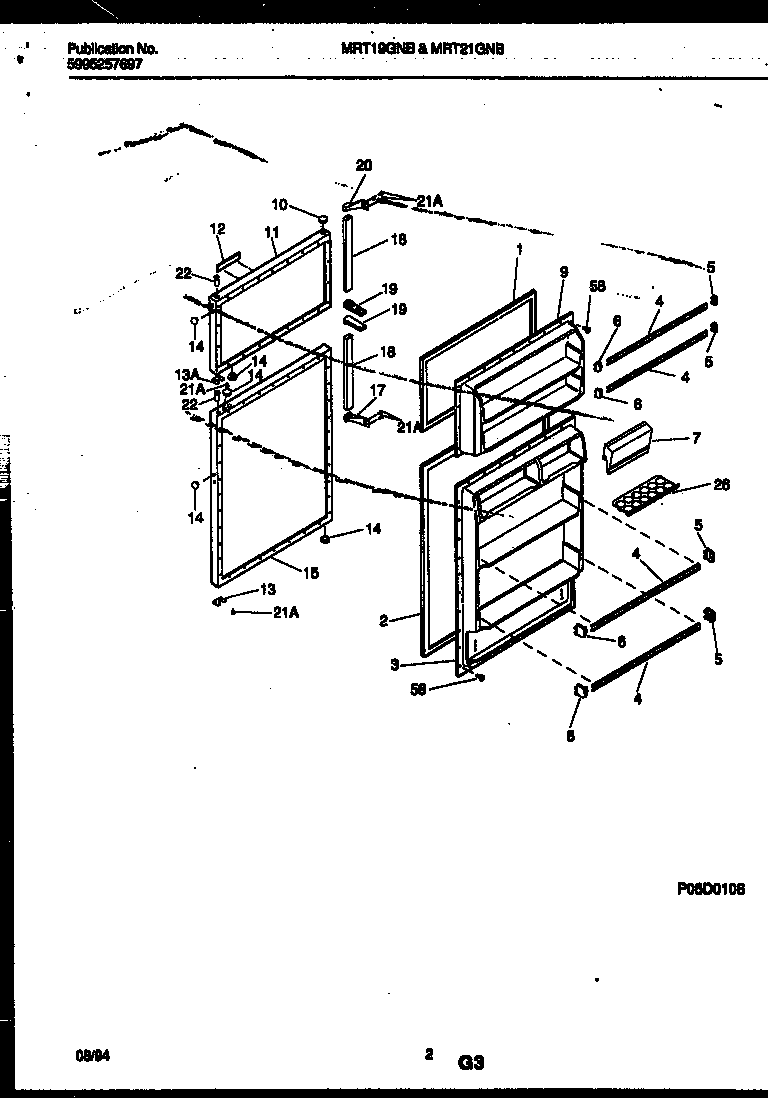

MRT19GNBD0 02 – DOOR PARTS

MRT19GNBD0 02 – DOOR PARTS

Written by

in

MRT19GNBD0 02 – DOOR PARTS

Products

PositionProduct
*10542INSULATION
1WCI 5303276826
2WCI 5303275772
3WCI 5303206569
4WCI 5303281388
5WCI 5303007295
6WCI 5303007297
7WCI 5303300066
9PANEL-INNER DOOR, FRZR
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917422
12WCI 215503711
12ATAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12BTAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
13DOOR STOP, REFR SECTION
13AWCI 5308000255
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/ INSULATION
17HANDLE END
18WCI 5303302991
19WCI 5303001296
20HANDLE END
21AWCI 5308011745
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
