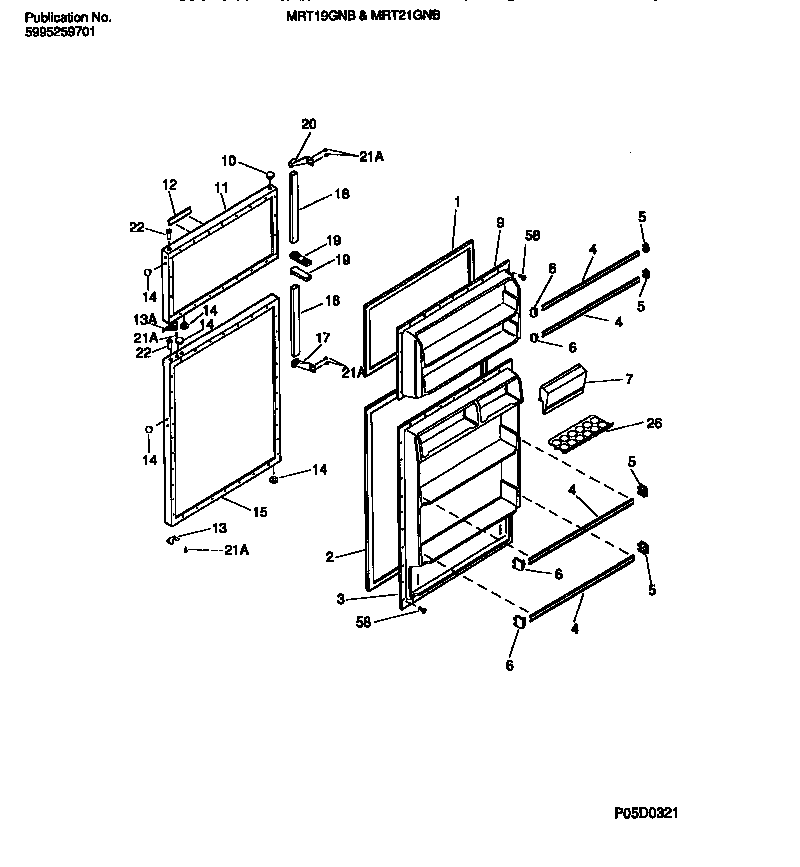

MRT19GNBD2 02 – DOOR SECTIONadmin2025-04-26T09:25:51+00:00MRT19GNBD2 02 – DOOR SECTION
Products
| Position | Product |
|---|
| *80240 | INSULATION |
| 1 | WCI 215608902 |
| 2 | WCI 215732403 |
| 3 | WCI 5303206569 |
| 4A | WCI 5303281387 |
| 4 | WCI 5303288345 |
| 5 | WCI 5303007295 |
| 6 | WCI 5303007297 |
| 7 | WCI 5303300066 |
| 9 | PANEL-INNER DOOR, FRZR |
| 10 | PLUG-BUTTON, ALMOND, HINGE BRG HOLE |
| 11 | WCI 5303917422 |
| 12 | WCI 215366311 |
| 12A | TAPE, ADHESIVE, 60`` LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC |
| 12B | TAPE, ADHESIVE, 12`` LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED) |
| 13A | WCI 218249002 |
| 13 | DOOR STOP, REFR SECTION |
| 14 | PLUG-BUTTON, ALMOND, HANDLE/DR STOP |
| 15 | PANEL-REFR DOOR, ALMOND, W/ INSULATION |
| 17 | HANDLE END |
| 18 | WCI 5303302991 |
| 19 | WCI 5303001296 |
| 20 | HANDLE END |
| 21 | WCI 5308011745 |
| 21A | 218252201 Frigidaire Refrigerator Screw |
| 22 | BEARING-HINGE |
| 26 | 215817806 Frigidaire Refrigerator Egg Tray |
| 58 | 5304455651 Frigidaire Refrigerator Screw |
