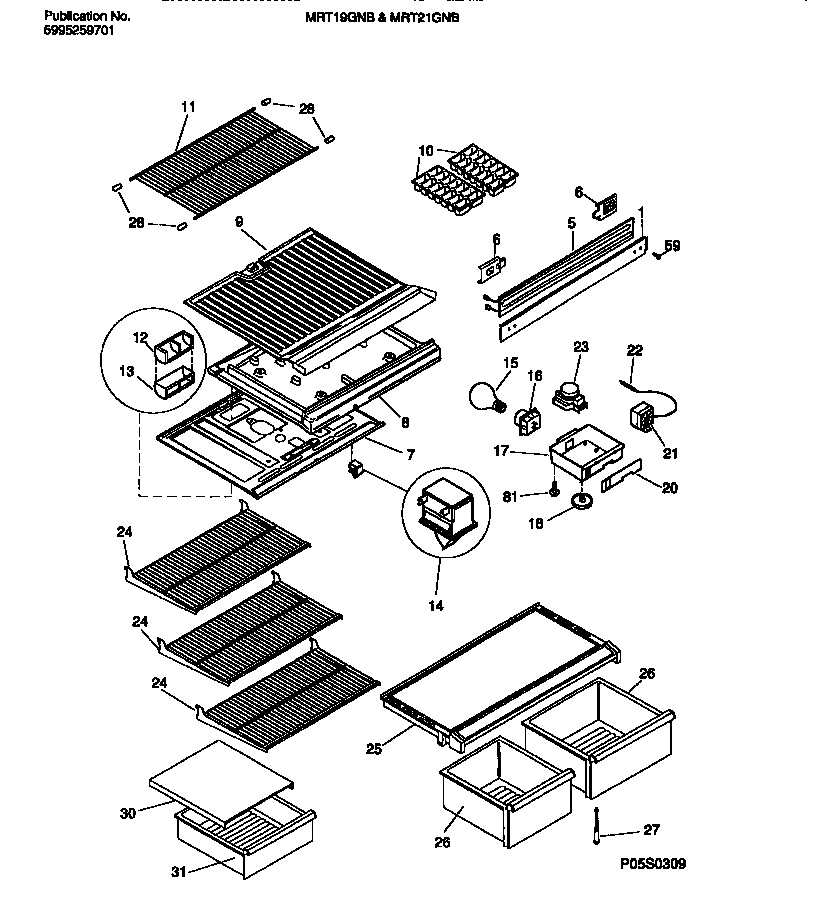

MRT19GNBY2 04 – SHELVES, CONTROLS, DIVIDER, MULLIONadmin2025-04-26T09:26:07+00:00MRT19GNBY2 04 – SHELVES, CONTROLS, DIVIDER, MULLION
Products
| Position | Product |
|---|
| 1 | WCI 218252504 |
| 5 | WCI 218271402 |
| 6 | WCI 218279800 |
| 7A | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 7B | WCI 5303001380 |
| 7 | TOP PANEL-REFR, W/SNAP BUSHING |
| 8A | HARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED) |
| 8 | DIVIDER, STYROFOAM |
| 9 | WCI 5303211427 |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 10A | 5303212918 Frigidaire Refrigerator Cont |
| 11A | WCI 5303283031 |
| 11 | SPACER, FRZR SHELF (NOT ILLUSTRATED) |
| 12 | WCI 5308001546 |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 5303015152 |
| 18 | WCI 5303300067 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 215611400 |
| 21A | WCI 5303001260 |
| 21 | WCI 5303200810 |
| 22 | TUBE |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 24 | WCI 5303207578 |
| 25 | WCI 5308010006 |
| 26 | PAN-CRISPER, 14.35`` WIDE |
| 26A | PAN-CRISPER, 11.35`` WIDE |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 30 | WCI 08009763 |
| 31 | WCI 5303297512 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
