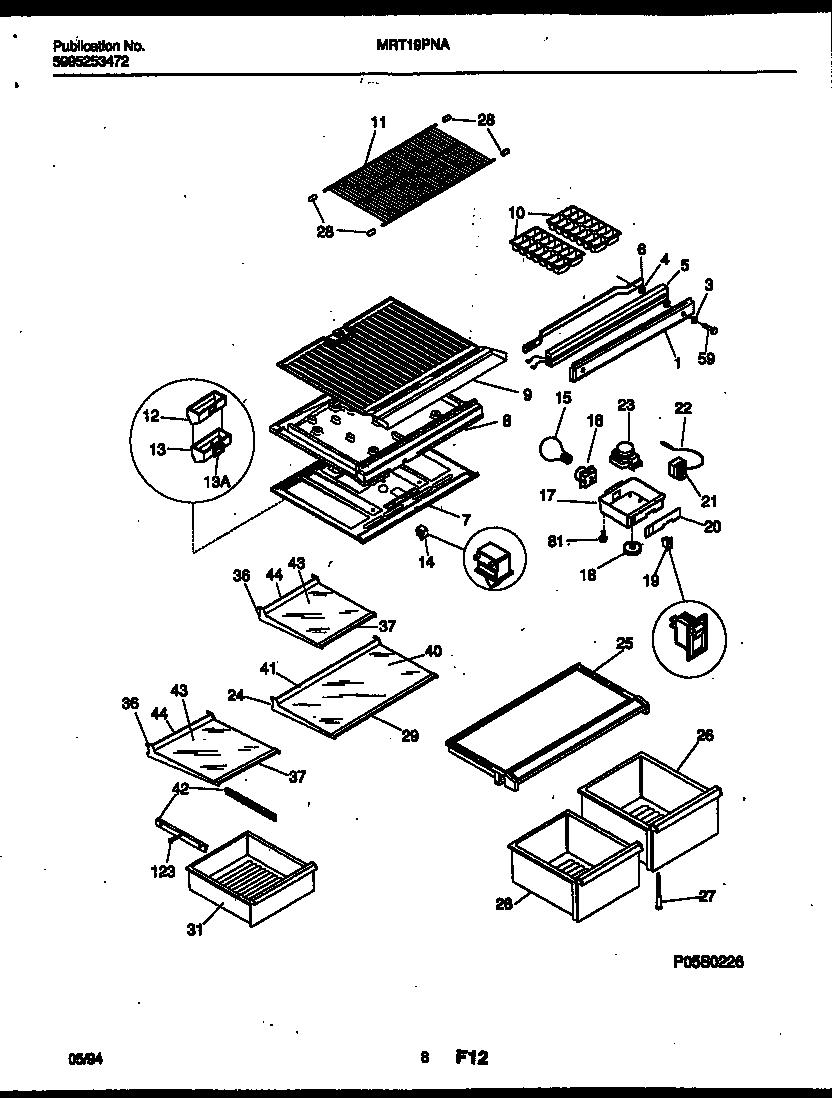

MRT19PNAD0 05 – SHELVES AND SUPPORTS

MRT19PNAD0 05 – SHELVES AND SUPPORTS

Written by

in

MRT19PNAD0 05 – SHELVES AND SUPPORTS

Products

PositionProduct
*10160LOCK-SHELF TRIM, REAR
*10160WCI 215339900
1WCI 5303200370
3WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI)
4SPACER-MULLION MTG, STEEL
5WCI 5303210351
6WCI 5308010008
7BWCI 5303001380
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8DIVIDER, STYROFOAM
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTRO, AIR, W/SEAL
12A5303001449 Frigidaire Refrigerator Seal
13WCI 5303001448
13AEXTENSION, AIR DEFLECTOR, WITH INSULATION
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17ANUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215069002
25WCI 5308010006
26APAN-CRISPER, 11.35“ WIDE
26PAN-CRISPER, 14.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29AWCI 5303209274
29WCI 5303295982
31WCI 5303304512
36FRAME-HALF SHELF
37WCI 5303295981
37ARETAINER-GLASS, (3) (NON-ILLUSTRATED)
40WCI 215723545
41TRIM-SHELF, 26.12“, REAR
42HANGER-PAN/BASKET, LH
42AHANGER-PAN/BASKET, RH
43WCI 215723544
44TRIM-SHELF, 12.59“, REAR
59WCI 215097000
815304455650 Frigidaire Refrigerator Screw
123WCI 08014528
