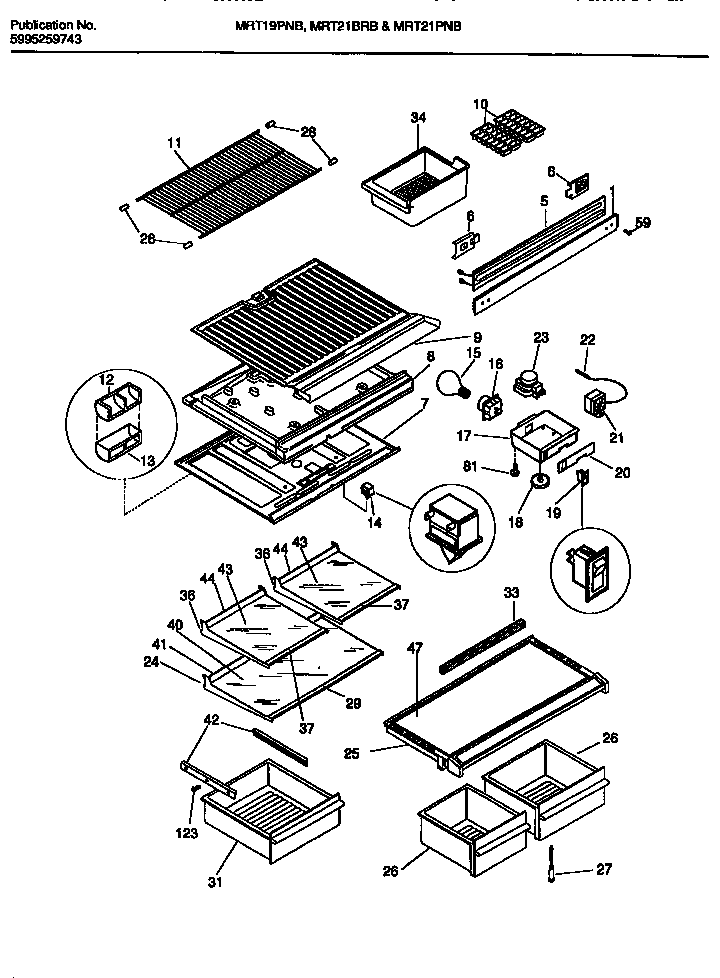

MRT19PNBW2 05 – SHELVES

MRT19PNBW2 05 – SHELVES

Written by

in

MRT19PNBW2 05 – SHELVES

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7AWCI 5303001380
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP PANEL-REFR, W/SNAP BUSHING
8DIVIDER, STYROFOAM
8AHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
9WCI 5303211427
10215667501 Frigidaire Refrigerator Ice Tray Primary
11WCI 5303283031
12DEFLECTOR-AIR
13ANUT, ANCHOR (NI)
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919107
25AWCI 5303280075
25COVER – CRISPER
26AWCI 5303304670
26PAN-CRISPER, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919504
31WCI 5303304512
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
36WCI 215919106
37WCI 215919510
40WCI 215723545
41WCI 215919804
42HANGER-PAN/BASKET, RH
42HANGER-PAN/BASKET, LH
43WCI 215723544
44WCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
