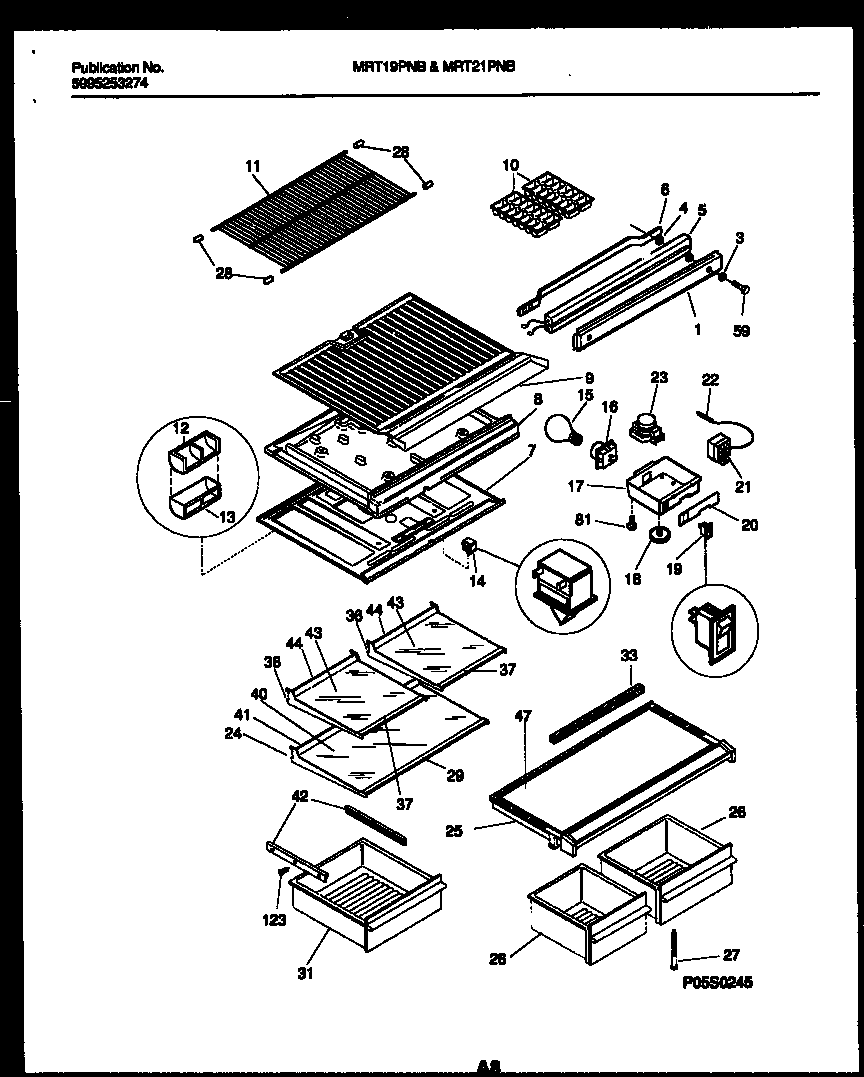

MRT19PNBY0 05 – SHELVES AND SUPPORTSadmin2025-04-26T09:27:06+00:00MRT19PNBY0 05 – SHELVES AND SUPPORTS
Products
| Position | Product |
|---|
| 1 | WCI 5303200370 |
| 3 | WASHER, NO. 10 FLAT, 7/32 X 7/16 OD, STEEL (NI) |
| 4 | WCI 218188100 |
| 5 | WCI 5303210351 |
| 6 | WCI 5308010008 |
| 7 | TOP PANEL-REFR, W/SNAP BUSHING |
| 7B | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 7A | WCI 5303001380 |
| 8 | DIVIDER, STYROFOAM |
| 9 | WCI 5303211427 |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11 | WCI 5303283031 |
| 12 | DEFLECTOR-AIR |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17A | NUT, ANCHOR (NI) |
| 17 | WCI 5303015152 |
| 18 | WCI 5303300067 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 215611400 |
| 21A | WCI 5303001260 |
| 21 | WCI 5303200810 |
| 22 | TUBE |
| 23 | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23A | 5304455649 Frigidaire Refrigerator Screw |
| 24 | WCI 215919107 |
| 25A | WCI 5303280075 |
| 25 | COVER - CRISPER |
| 26 | WCI 5303304670 |
| 26 | PAN-CRISPER, LH |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | WCI 215919504 |
| 31 | WCI 5303304512 |
| 33 | GASKET-CRISPER COVER (NON-ILLUSTRATED) |
