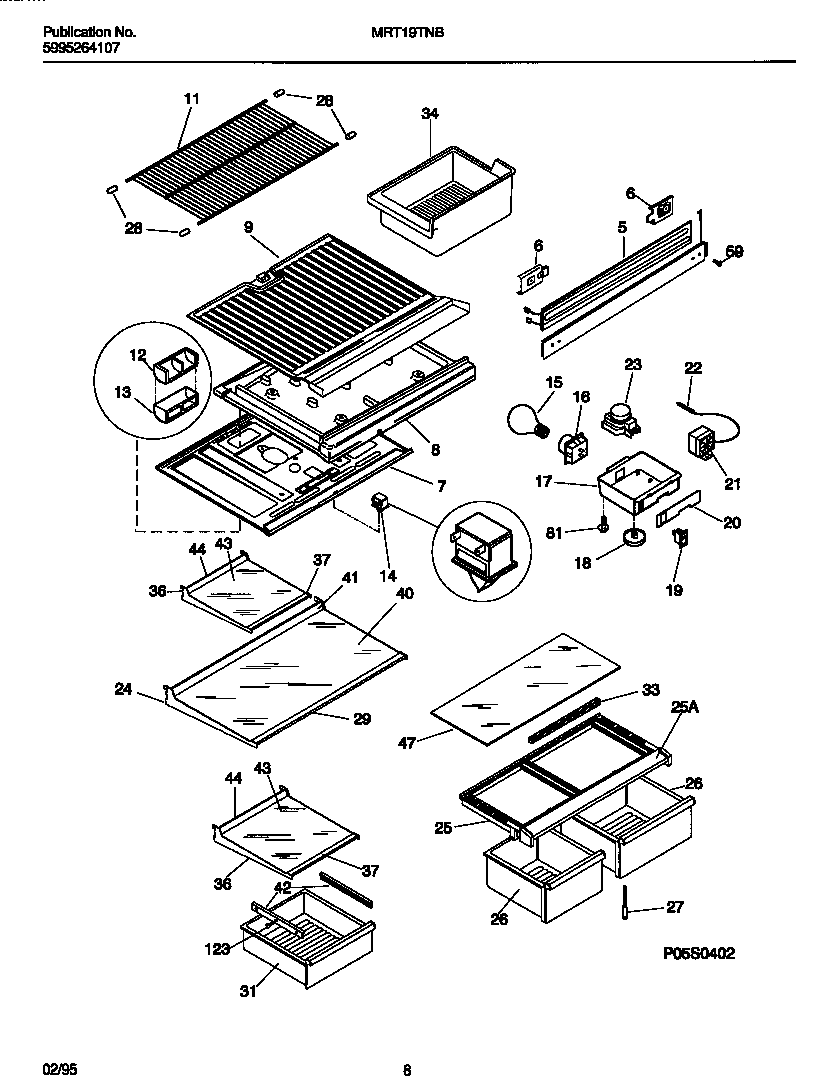

MRT19TNBZ2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

MRT19TNBZ2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

MRT19TNBZ2 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7ATOP PANEL-REFR, W/SNAP BUSHING
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7CWCI 5303001380
8BHARNESS-WIRING, CONTROL/DIVIDER,(NON-ILLUSTRATED)
8ADIVIDER, STYROFOAM
9WCI 5303211427
11AWCI 5303283031
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17AWCI 5303015152
17BNUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303200810
21BWCI 5303001260
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919107
25COVER – CRISPER
25WCI 5303280075
26BWCI 5303304670
26APAN-CRISPER, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919504
31WCI 5303304512
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
345303212918 Frigidaire Refrigerator Cont
36WCI 215919106
37WCI 215919510
40WCI 215723545
41WCI 215919804
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
43WCI 215723544
44WCI 215919810
47WCI 5303209283
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
