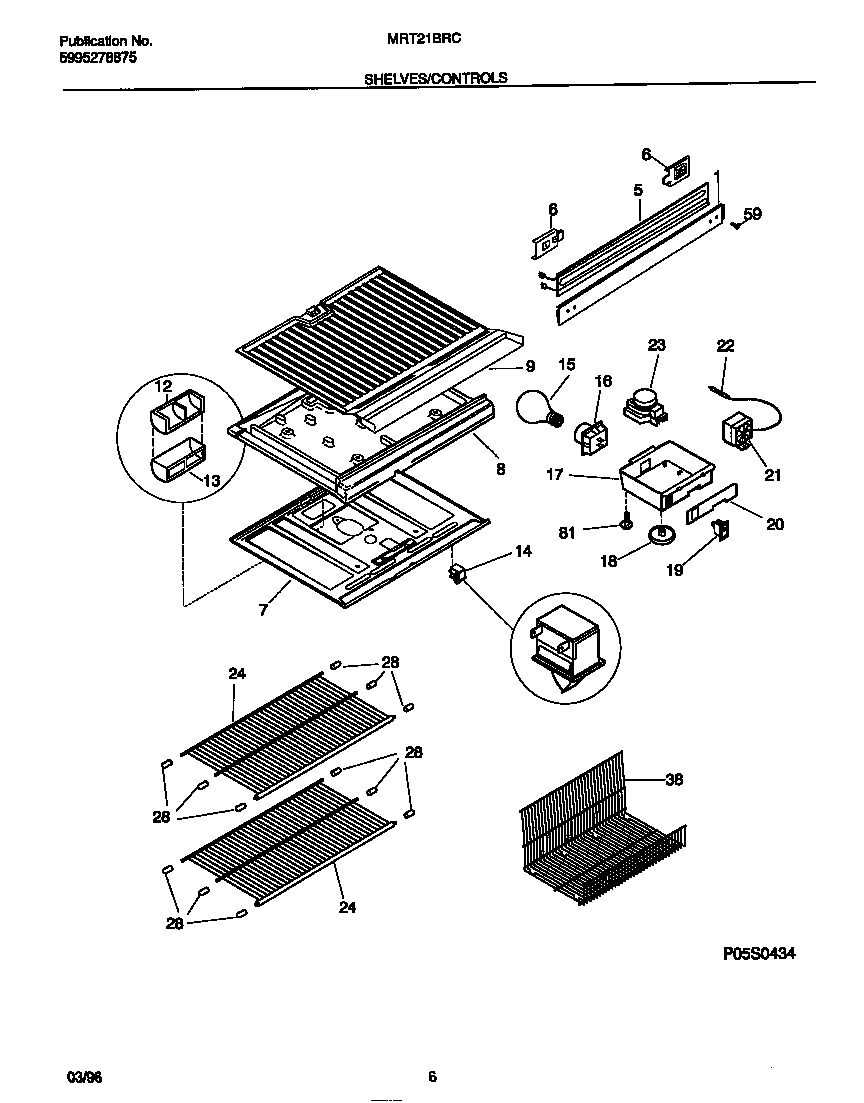

MRT21BRCW1 04 – SHELVES/CONTROLS

Products

Position	Product
*23765	SPACER, FRZR SHELF (NOT ILLUSTRATED)
1	WCI 218651900
5	WCI 218271402
6	WCI 218279800
7A	TOP-REFRIGERATOR
7C	WCI 5303001380
7B	BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
8B	HARNESS-DIVIDER (NON-ILLUSTRATED)
8A	WCI 5308013674
9	BOTTOM, FREEZER
12	DEFLECTOR-AIR
13	COVER – AIR DEFLECTOR
14	5309918806 Frigidaire Refrigerator Light Switch Door
15	316538904 Frigidaire Oven Lamp Light
16	SOCKET-LIGHT/LAMP
17B	NUT, ANCHOR (NI)
17A	WCI 5303015152
18	WCI 5303313909
19	SWITCH-ENERGY SAVER, SLIDE TYPE
20	WCI 218459901
21A	WCI 5303200810
21B	WCI 5303001260
22	TUBE
23B	5304455649 Frigidaire Refrigerator Screw
23A	215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24	SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION
28	END CAP-SHELF,PROTECTOR
38	WCI 5303297857
59	240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
81	5304455650 Frigidaire Refrigerator Screw
