MRT21BRCY1 03 – CABINET

MRT21BRCY1 03 – CABINET

Written by

in

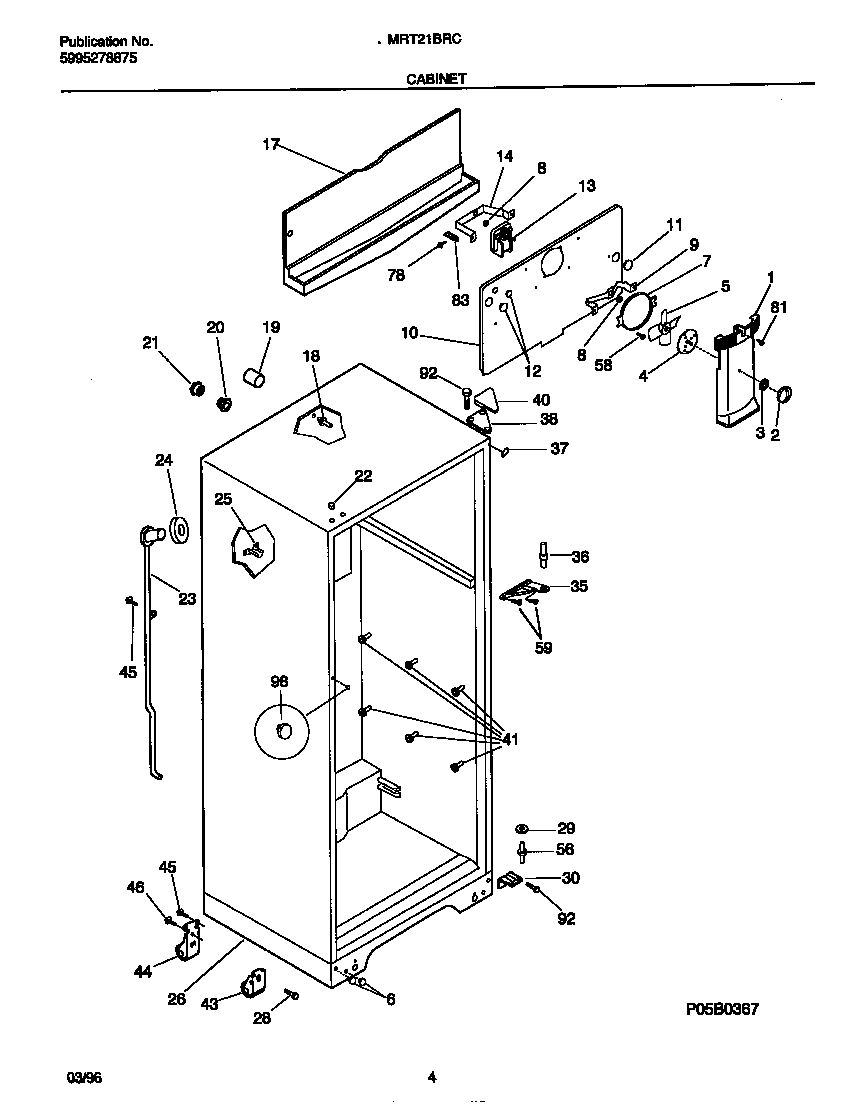

MRT21BRCY1 03 – CABINET

Products

PositionProduct
*23762PLUG, BUTTON, CABINET LINER (NI)
*23763TOUCH, UP PAINT, ALMOND (NI)
*237615304455650 Frigidaire Refrigerator Screw
1WCI 5303307435
2WCI 5303307351
3Nut,push-on
4DAMPER-FAN COVER
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
6PLUG-BUTTON, ALMOND, UPR HINGE HOLES
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
10ACOVER, COIL
10BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12AWCI 215079000
12BWCI 215079100
135300158289 Frigidaire Evaporator Fan Motor
14BRACKET-MOTOR MTG, REAR
17WCI 5303001470
18SUPPORT – EVAP COVER, (2)
19TUBE-RUBBER
20WCI 5303001286
21WCI 5303001287
22WCI 215774911
23WCI 5303210377
24WCI 5303207353
25WCI 215774100
26WCI 218605102
28BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750
29WCI 5308011326
30CWCI 218605300
30BWCI 218605200
30AWCI 218220200
35WCI 218220102
36218251300 Frigidaire Refrigerator Center Hinge Pin
37TRIM-CABINET CORNER, ALMOND
38WCI 3206100
40WCI 3206105
41A5304509705 Frigidaire Refrigerator Grommet
41B5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43BWCI 5308009790
43AWCI 5303212490
44WCI 218713600
455304455651 Frigidaire Refrigerator Screw
46BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/2, (2)
565303001321 Frigidaire Refrigerator Lower Hinge Pin
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
83WCI 5308000107
92241710601 Frigidaire Refrigerator Screw
98PLUG-BUTTON, ALMOND, CTR HINGE HOLE
