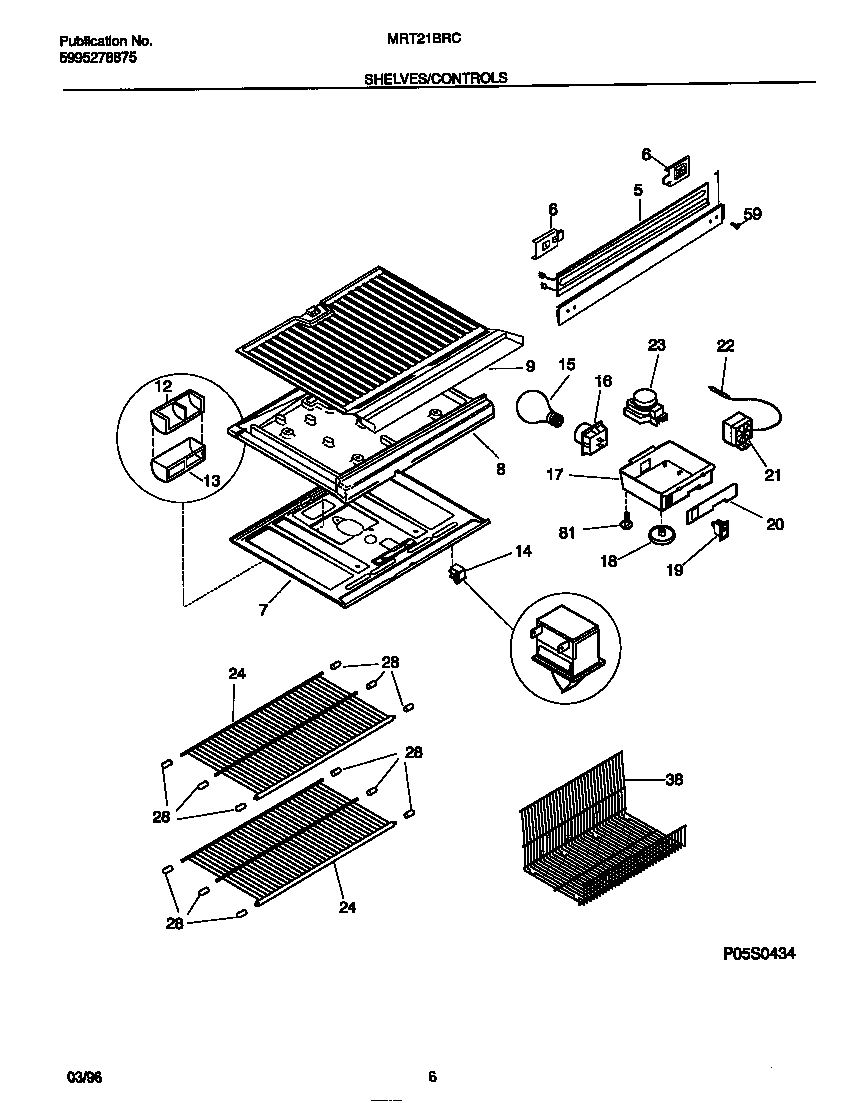

MRT21BRCY1 04 – SHELVES/CONTROLSadmin2025-04-26T09:28:17+00:00MRT21BRCY1 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| *23765 | SPACER, FRZR SHELF (NOT ILLUSTRATED) |
| 1 | WCI 218651901 |
| 5 | WCI 218271402 |
| 6 | WCI 218279800 |
| 7A | TOP-REFRIGERATOR |
| 7C | WCI 5303001380 |
| 7B | BUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED) |
| 8B | HARNESS-DIVIDER (NON-ILLUSTRATED) |
| 8A | WCI 5308013674 |
| 9 | BOTTOM, FREEZER |
| 12 | DEFLECTOR-AIR |
| 13 | COVER - AIR DEFLECTOR |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | SOCKET-LIGHT/LAMP |
| 17B | NUT, ANCHOR (NI) |
| 17A | WCI 5303015152 |
| 18 | WCI 5303313909 |
| 19 | SWITCH-ENERGY SAVER, SLIDE TYPE |
| 20 | WCI 218459901 |
| 21A | WCI 5303200810 |
| 21B | WCI 5303001260 |
| 22 | TUBE |
| 23B | 5304455649 Frigidaire Refrigerator Screw |
| 23A | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 24 | SHELF, FIXED, FULL WIDTH, WIRE, REFR SECTION |
| 28 | END CAP-SHELF,PROTECTOR |
| 38 | WCI 5303297857 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
