MRT21BRCZ1 02 – DOOR

MRT21BRCZ1 02 – DOOR

Written by

in

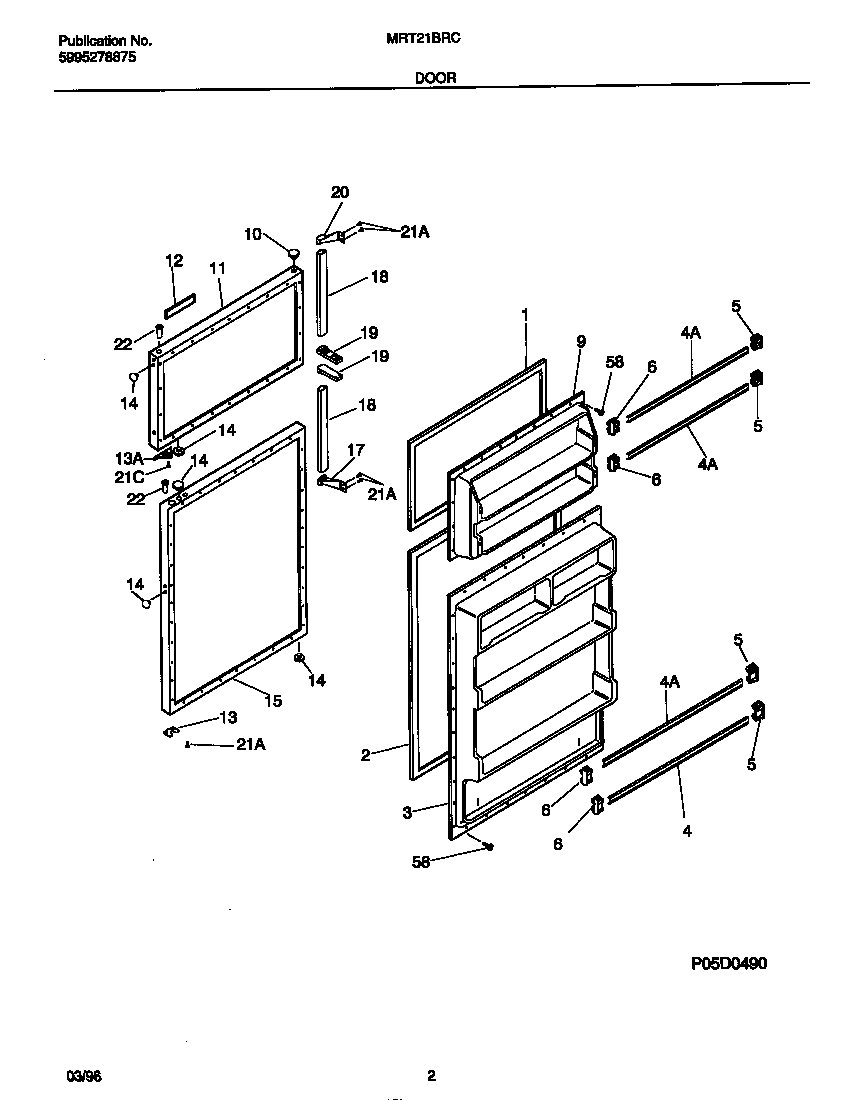

MRT21BRCZ1 02 – DOOR

Products

PositionProduct
*23760INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303295254
4WCI 5303281388
4WCI 5303281387
5WCI 5303007295
6WCI 5303007297
9WCI 5318540802
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917517
12FRAME – NAMEPLATE,WHITE
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13WCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917487
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
58216858001 Frigidaire Refrigerator Screw
