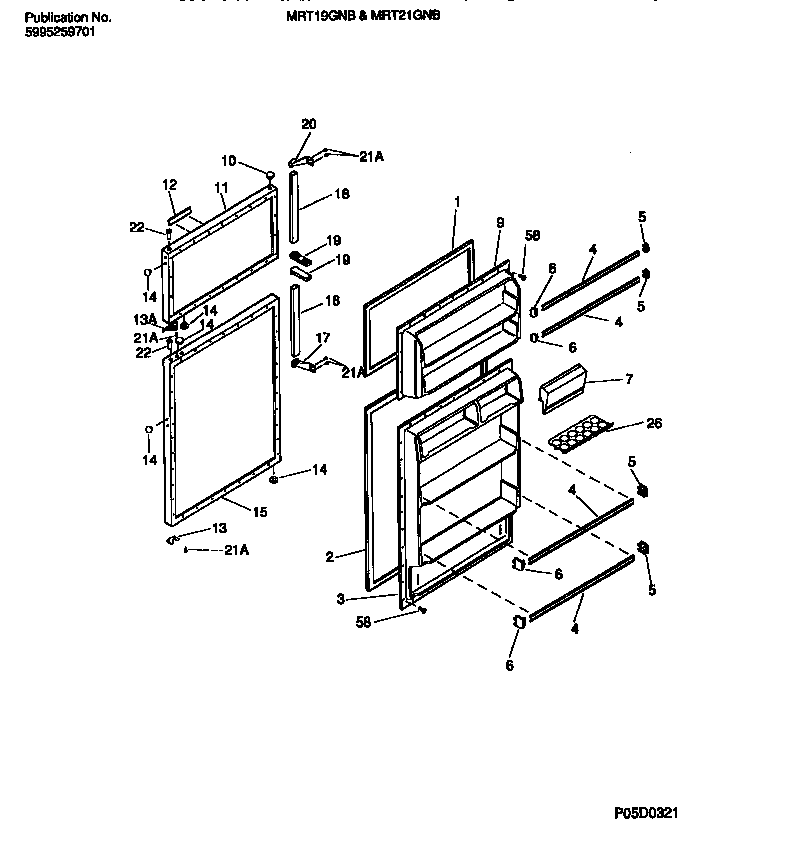

MRT21GNBD1 02 – DOOR SECTION

MRT21GNBD1 02 – DOOR SECTION

Written by

in

MRT21GNBD1 02 – DOOR SECTION

Products

PositionProduct
*80240INSULATION
1WCI 215608903
2WCI 215732403
3WCI 5303212482
4AWCI 5303281387
4WCI 5303281388
5WCI 5303007295
6WCI 5303007297
7WCI 5303300066
9WCI 5318540802
10PLUG-BUTTON, ALMOND, HINGE BRG HOLE
11WCI 5303917424
12WCI 215366311
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13AWCI 218249002
14PLUG-BUTTON, ALMOND, HANDLE/DR STOP
15PANEL-REFR DOOR, ALMOND, W/ INSULATION
17HANDLE END
18WCI 5303302991
19WCI 5303001296
20HANDLE END
21WCI 5308011745
21A218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
