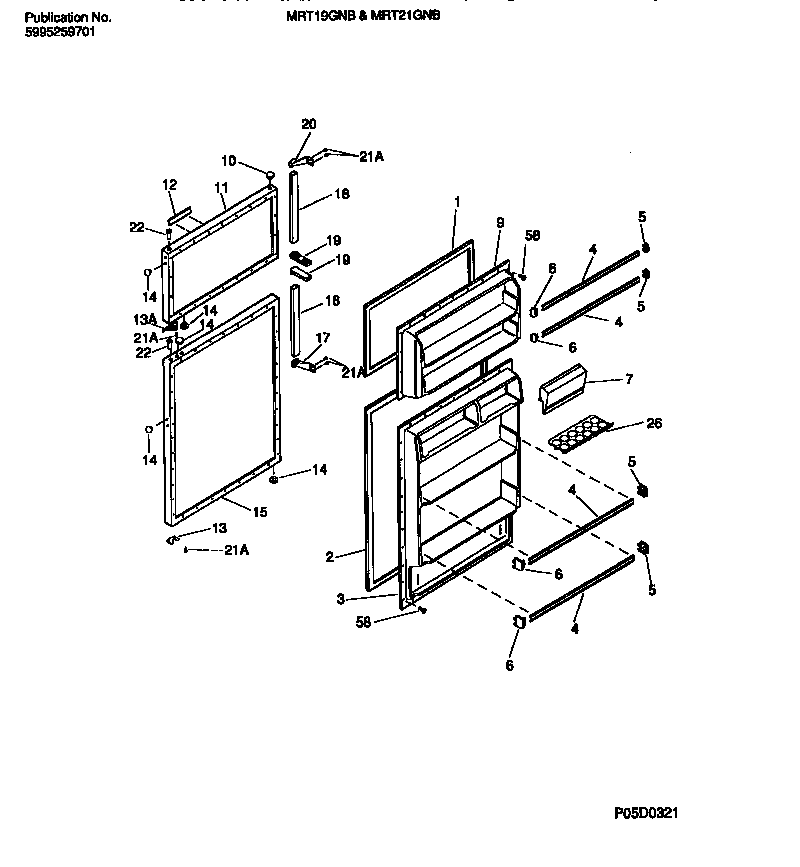

MRT21GNBZ1 02 – DOOR SECTION

MRT21GNBZ1 02 – DOOR SECTION

Written by

in

MRT21GNBZ1 02 – DOOR SECTION

Products

PositionProduct
*80240INSULATION
1WCI 215608913
2WCI 215732413
3WCI 5303212482
4AWCI 5303281388
5WCI 5303007295
6WCI 5303007297
7WCI 5303300066
9WCI 5318540802
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917423
12ATAPE, ADHESIVE, 60“ LG, FOAM, TRIM/NAMEPLATE, DOUBLE FAC
12BTAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
12FRAME – NAMEPLATE,WHITE
13AWCI 218249001
13DOOR STOP, REFR SECTION
14240494001 Frigidaire Refrigerator Plug Button
15PANEL-REFR DOOR,WHITE
17HANDLE END
18WCI 5303302990
19WCI 5303001296
20HANDLE END
21WCI 5308011745
21A218252201 Frigidaire Refrigerator Screw
22BEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
585304455651 Frigidaire Refrigerator Screw
