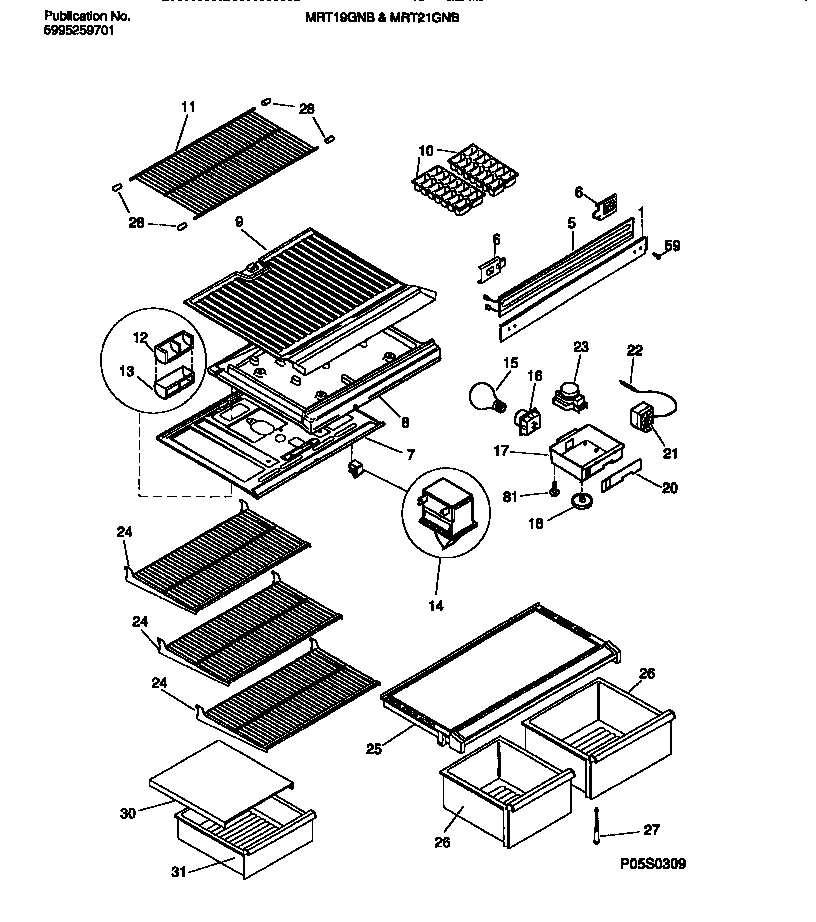

MRT21GNBZ1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

MRT21GNBZ1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Written by

in

MRT21GNBZ1 04 – SHELVES, CONTROLS, DIVIDER, MULLION

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7ABUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7TOP-REFRIGERATOR
7BWCI 5303001380
8AHARNESS-DIVIDER (NON-ILLUSTRATED)
8WCI 5308013674
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303288243
11SPACER, FRZR SHELF (NOT ILLUSTRATED)
12WCI 5308001546
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17WCI 5303015152
17ANUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, SLIDE TYPE
20WCI 215611400
21AWCI 5303001260
21WCI 5303200810
22TUBE
23A5304455649 Frigidaire Refrigerator Screw
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, CANTILEVER, FULL WIDTH, WIRE
25COVER-CRISPER PAN
26PAN-CRISPER, 14.35“ WIDE
26APAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
30WCI 08009763
31WCI 5303297512
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
