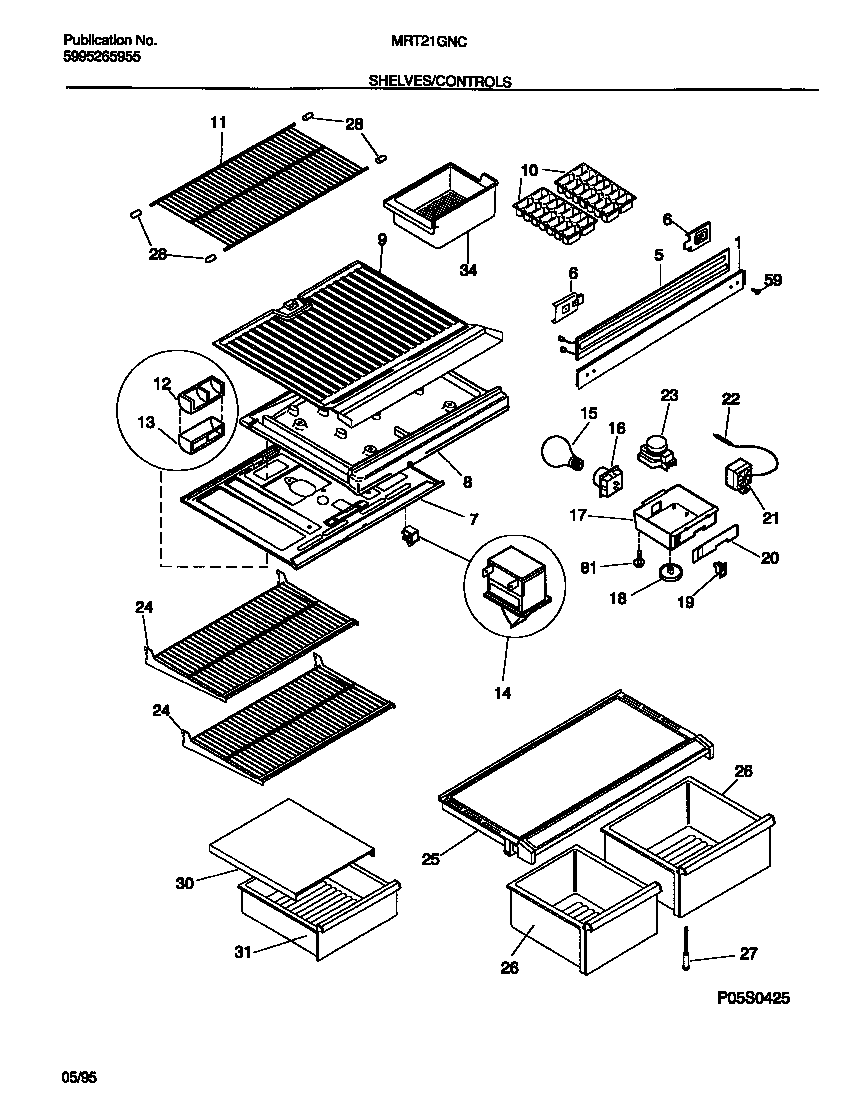

MRT21GNCZ0 04 – SHELVES/CONTROLS

MRT21GNCZ0 04 – SHELVES/CONTROLS

Written by

in

MRT21GNCZ0 04 – SHELVES/CONTROLS

Products

PositionProduct
1WCI 218252503
5WCI 218271402
6WCI 218279800
7BBUSHING, SNAP-IN, PLASTIC (NOT ILLUSTRATED)
7ATOP-REFRIGERATOR
7CWCI 5303001380
8BHARNESS-DIVIDER (NON-ILLUSTRATED)
8AWCI 5308013674
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303288243
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12DEFLECTOR-AIR
13COVER – AIR DEFLECTOR
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16SOCKET-LIGHT/LAMP
17AWCI 5303015152
17BNUT, ANCHOR (NI)
18WCI 5303300067
19SWITCH-ENERGY SAVER, ROCKER
20WCI 215611400
21BWCI 5303001260
21AWCI 5303200810
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24SHELF, CANTILEVER, FULL WIDTH, WIRE
25COVER-CRISPER PAN
26BWCI 5303304670
26APAN-CRISPER, LH
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
30WCI 08009763
31WCI 5303305616
345303212918 Frigidaire Refrigerator Cont
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
