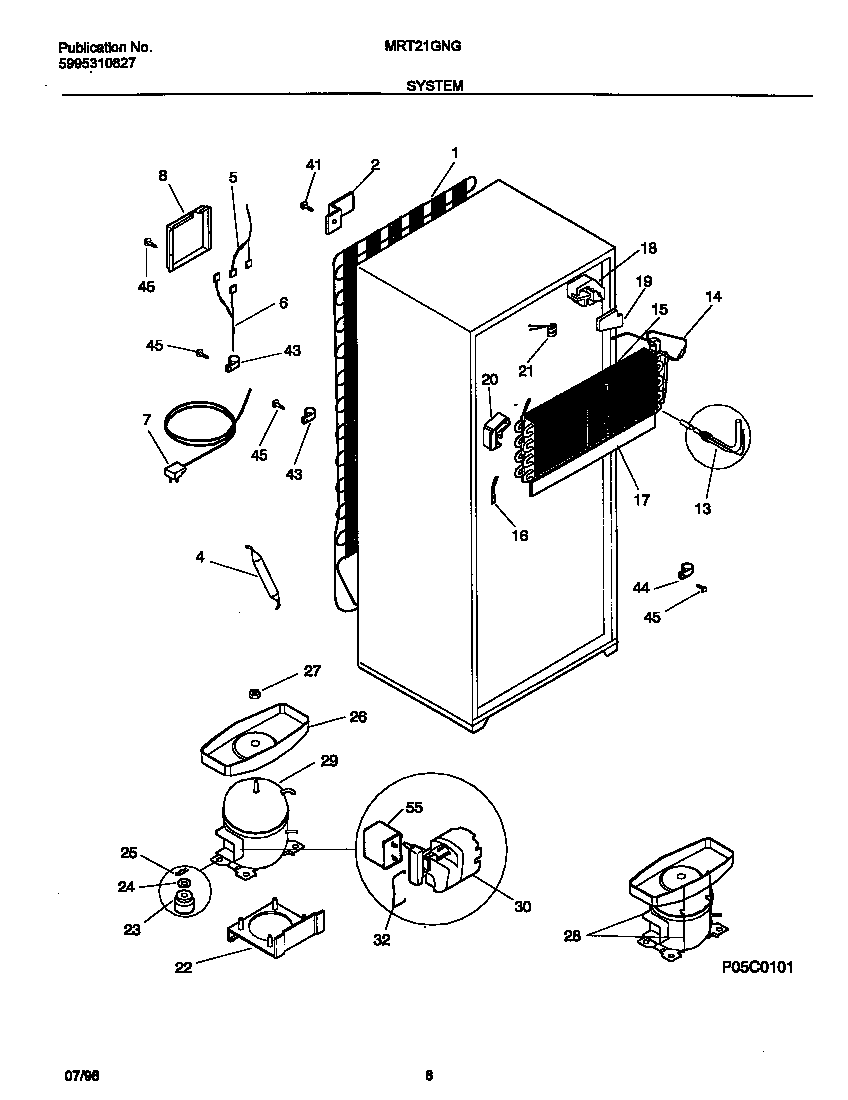

MRT21GNGW0 05 – SYSTEM

MRT21GNGW0 05 – SYSTEM

Written by

in

MRT21GNGW0 05 – SYSTEM

Products

PositionProduct
*463045304455852 Frigidaire Refrigerator Screw
*463035303307583 Frigidaire Refrigerator P1 Pad Noise Reduction
*46306HOT TUBE REPAIR KIT-SERVICE
*462965303017691 Frigidaire Refrigerator Spacer-Tube
*46302SCREW,HEX HD SER WSHR ,8-18 X 0.375
*46305COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
*46299WCI 5304406721
*46300WCI 5304406722
*46297WCI 5304406039
*46298WCI 5304406040
*46301WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5HARNESS-WIRING, CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076405
145317842502 Frigidaire Defrost Heater
15WCI 218765400
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218773700
19INSULATION PLUG, RH
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45A5304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
