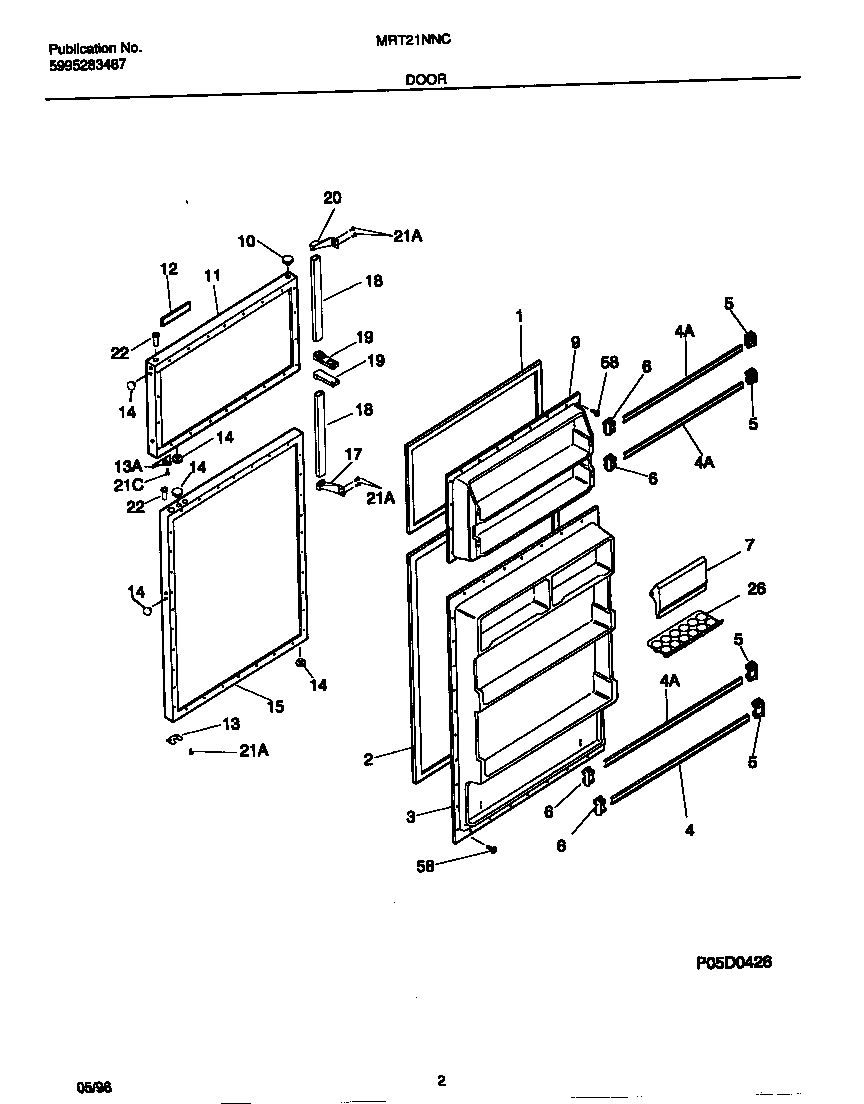

MRT21NNCW2 02 – DOOR

MRT21NNCW2 02 – DOOR

Written by

in

MRT21NNCW2 02 – DOOR

Products

PositionProduct
*07120INSULATION
1WCI 215608913
2WCI 215732413
3WCI 218658901
4WCI 5303281387
4WCI 5303281388
5WCI 5303007295
6WCI 5303007297
7BWCI 5303001380
7AWCI 5303319706
9WCI 5318540802
10PLUG-BUTTON, WHITE, HINGE BRG HOLE
11WCI 5303917517
12FRAME – NAMEPLATE,WHITE
12TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
13DOOR STOP, REFR SECTION
13WCI 218249001
14240494001 Frigidaire Refrigerator Plug Button
15WCI 5303917487
17HANDLE END
18WCI 5303302990
19WCI 218217401
20HANDLE END
21SCREW, NO. 8 OVAL HEAD, 10-32 (CA) X 5/8, CROSS RECESSED
21218252201 Frigidaire Refrigerator Screw
22BWCI 218519300
22ABEARING-HINGE
26215817806 Frigidaire Refrigerator Egg Tray
58216858001 Frigidaire Refrigerator Screw
