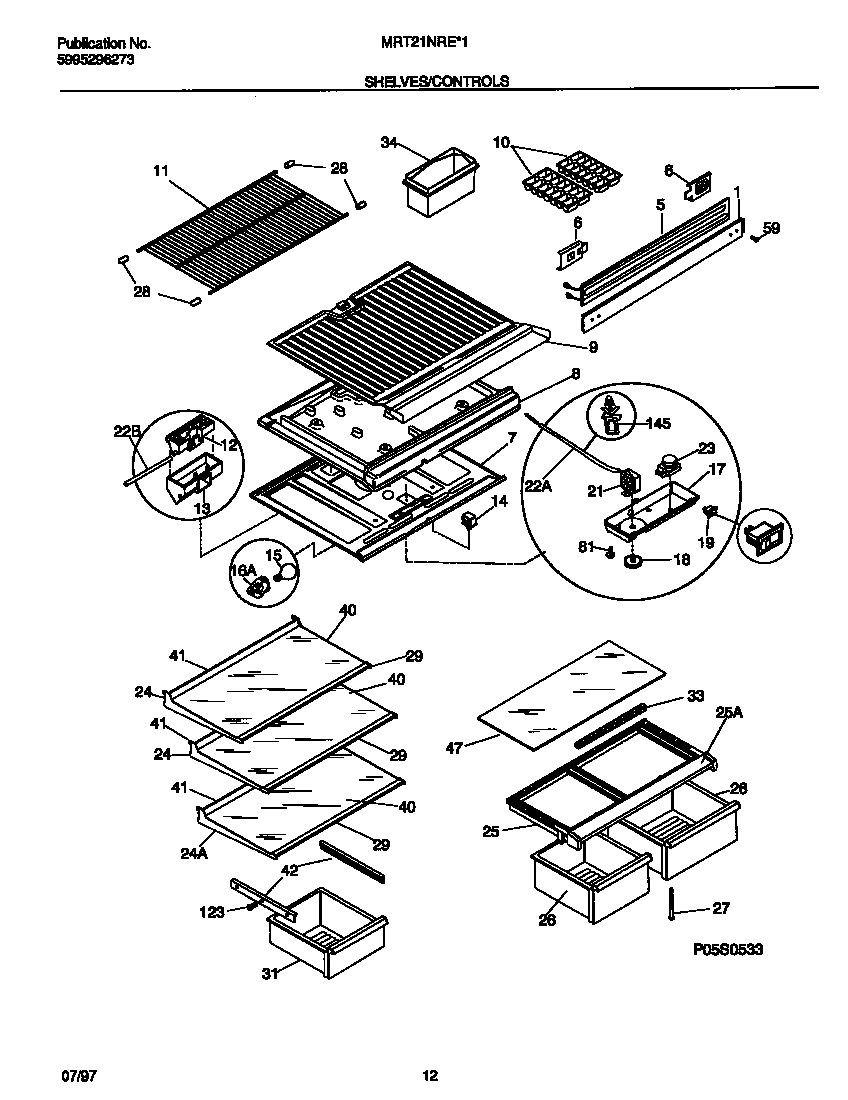

MRT21NRED1 05 – SHELVES/CONTROLS

MRT21NRED1 05 – SHELVES/CONTROLS

Written by

in

MRT21NRED1 05 – SHELVES/CONTROLS

Products

PositionProduct
*128863205266 Frigidaire Refrigerator Edge Protector
1WCI 218651901
5WCI 218781002
6WCI 218279800
7WCI 218738800
8WCI 218781400
9BOTTOM, FREEZER
10215667501 Frigidaire Refrigerator Ice Tray Primary
11AWCI 5303288243
11BSPACER, FRZR SHELF (NOT ILLUSTRATED)
12AWCI 218730000
12B5303001449 Frigidaire Refrigerator Seal
13WCI 218631001
145309918806 Frigidaire Refrigerator Light Switch Door
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17BNUT, ANCHOR (NI)
17AWCI 5303321455
18WCI 5303311079
19SWITCH-ENERGY SAVER, ROCKER
21BWCI 5303001260
21ACOLD CONTROL
22WCI 218731104
22TUBE
23B5304455649 Frigidaire Refrigerator Screw
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
24WCI 215919123
24WCI 215919118
25WCI 5303280075
25WCI 5303206538
26BWCI 5303319064
26APAN-CRISPER, 11.35“ WIDE
27SUPPORT-CRISPER CVR, ADJUSTABLE
28END CAP-SHELF,PROTECTOR
29WCI 215919459
31WCI 5303319066
33GASKET-CRISPER COVER (NON-ILLUSTRATED)
34WCI 3018945
40WCI 218390544
41WCI 215919805
42BHANGER-PAN/BASKET, RH
42AHANGER-PAN/BASKET, LH
47WCI 218390553
59240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4
815304455650 Frigidaire Refrigerator Screw
123215005101 Frigidaire Refrigerator Screw
145WCI 218660800
