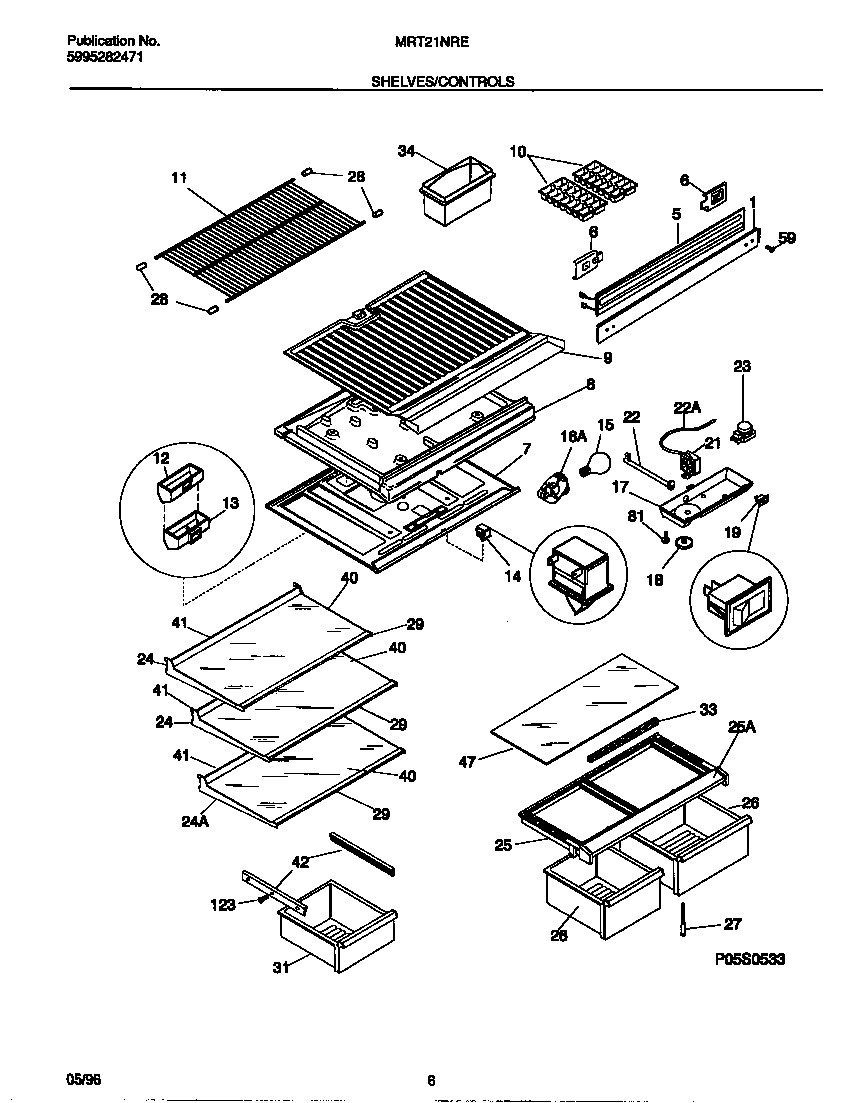

MRT21NREW0 04 – SHELVES/CONTROLSadmin2025-04-26T09:19:40+00:00MRT21NREW0 04 – SHELVES/CONTROLS
Products
| Position | Product |
|---|
| 1 | WCI 218651900 |
| 5 | WCI 218271402 |
| 6 | WCI 218279800 |
| 7B | WCI 5303001380 |
| 7A | WCI 3019038 |
| 8B | HARNESS-WIRING, CONTROL/DIVIDER (NOT ILLUSTRATED) |
| 8A | WCI 5303019039 |
| 8C | 3205266 Frigidaire Refrigerator Edge Protector |
| 9 | BOTTOM, FREEZER |
| 10 | 215667501 Frigidaire Refrigerator Ice Tray Primary |
| 11B | SPACER, FRZR SHELF (NOT ILLUSTRATED) |
| 11A | WCI 5303288243 |
| 12 | WCI 218630800 |
| 13 | WCI 218631001 |
| 14 | 5309918806 Frigidaire Refrigerator Light Switch Door |
| 15 | 316538904 Frigidaire Oven Lamp Light |
| 16 | 218906802 Frigidaire Light Lamp Socket |
| 17B | NUT, ANCHOR (NI) |
| 17A | WCI 5303307349 |
| 18 | WCI 5303311079 |
| 19 | SWITCH-ENERGY SAVER, ROCKER |
| 21B | WCI 5303001260 |
| 21A | WCI 5303018894 |
| 22 | WCI 3018891 |
| 22 | TUBE |
| 23A | 215846602 Frigidaire Refrigerator 8-Hour Defrost Timer |
| 23B | 5304455649 Frigidaire Refrigerator Screw |
| 24 | WCI 215919118 |
| 24 | WCI 215919123 |
| 25 | WCI 5303206538 |
| 25 | WCI 5303280075 |
| 26B | WCI 5303319064 |
| 26A | PAN-CRISPER, 11.35`` WIDE |
| 27 | SUPPORT-CRISPER CVR, ADJUSTABLE |
| 28 | END CAP-SHELF,PROTECTOR |
| 29 | WCI 215919459 |
| 31 | WCI 5303319066 |
| 33 | GASKET-CRISPER COVER (NON-ILLUSTRATED) |
| 34 | WCI 3018945 |
| 40 | WCI 218390544 |
| 41 | WCI 215919805 |
| 42A | HANGER-PAN/BASKET, LH |
| 42B | HANGER-PAN/BASKET, RH |
| 47 | WCI 218390553 |
| 59 | 240442708 Frigidaire Refrigerator Screw-#10-32 X 3/4 |
| 81 | 5304455650 Frigidaire Refrigerator Screw |
| 123 | 215005101 Frigidaire Refrigerator Screw |
