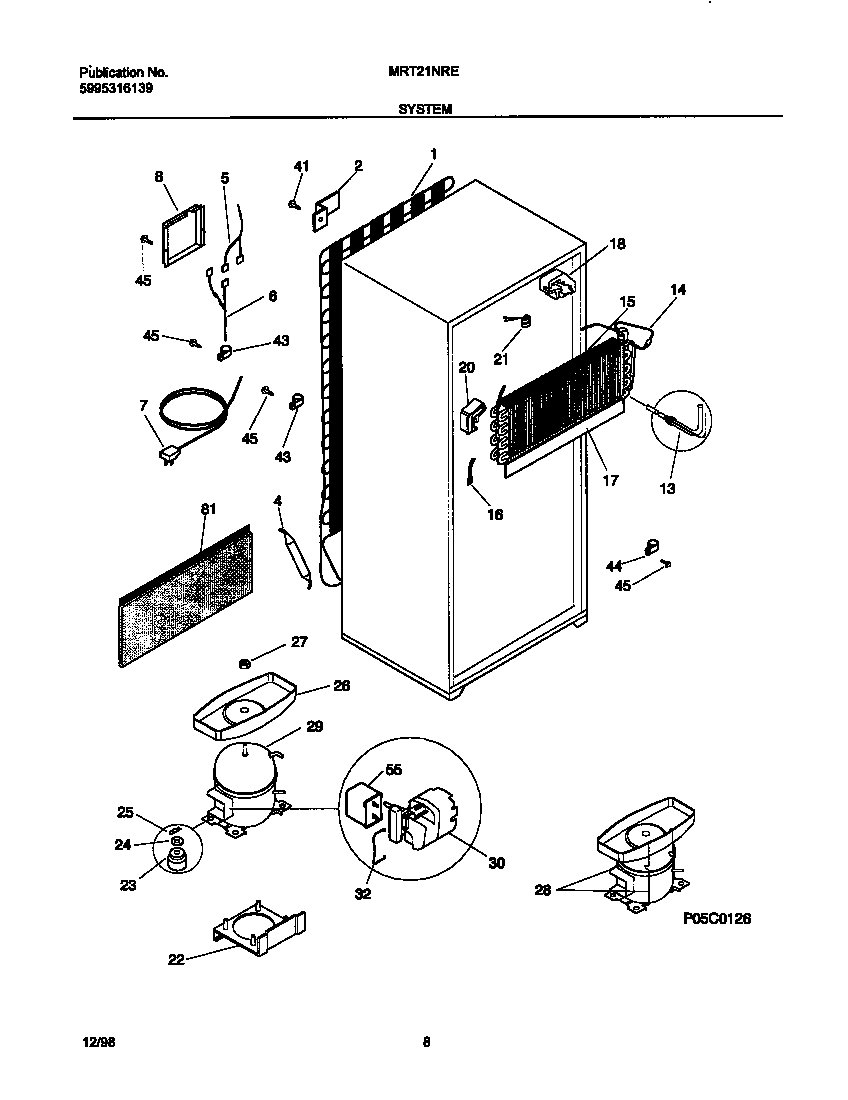

MRT21NREW3 05 – SYSTEM

MRT21NREW3 05 – SYSTEM

Written by

in

MRT21NREW3 05 – SYSTEM

Products

PositionProduct
*64579WCI 5304406040
*64582WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*64580WCI 5304406721
*64583HOT TUBE REPAIR KIT-SERVICE
*64581WCI 5304406722
*64578WCI 5304406039
1WCI 218657100
2BRACKET, MOUNTIN, CONDENSER, (4)
45303305677 Frigidaire Replacement Filter Dryer Filters
5WIRING HARNESS,CONTROL/DIVIDER
6WCI 215257001
7CORD-ELECTRIC POWER
8WCI 5303001197
13WCI 215076405
145317842502 Frigidaire Defrost Heater
15WCI 218765400
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17INSULATOR-EVAP, PLASTIC
18WCI 218773700
20INSULATION BLOCK, LH
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5308013663
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
24WASHER-COMPR MTG
25CLIP – COMPRESSOR MTG
26WCI 215372500
27Nut,lock `1/4-20 ,drain pan mtg
28PAN RETAINER KIT, SERVICE
295304478809 Frigidaire Refrigerator Compressor Assembly
30WCI 218721101
32218740800 Frigidaire Refrigerator Clamp
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
445308000133 Frigidaire Refrigerator Clamp
45BSCREW,HEX HD SER WSHR ,8-18 X 0.375
45A5304455651 Frigidaire Refrigerator Screw
555304464438 Frigidaire Compressor Run Capacitor
81COVER-SOUND INSUL,PRESSBOARD/FOAM ,MACHINE COMPT
